Installation

INSTALLATION

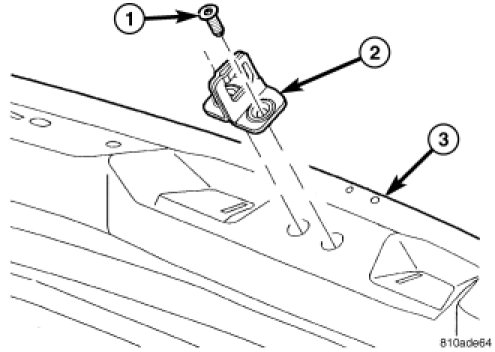

1. Place striker in position on vehicle.
2. Align striker to outline mark on sill.
3. Install screws attaching striker to sill. Tighten screws to 28 Nm (250 in. lbs.) torque.
4. Verify liftgate alignment and operation.
5. Install liftgate sill scuff plate. Liftgate Sill Scuff Plate - Installation.
