Trunk / Liftgate Motor: Diagrams

Component ID: 17

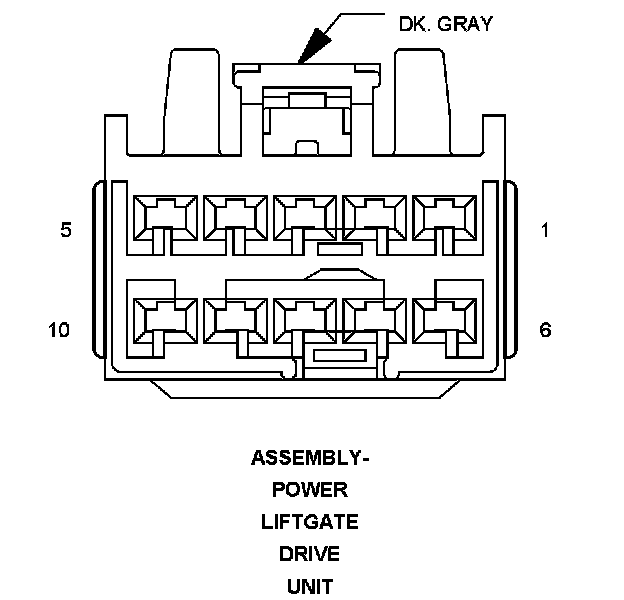

Component : ASSEMBLY-POWER LIFTGATE DRIVE UNIT

Connector:
Name : ASSEMBLY-POWER LIFTGATE DRIVE UNIT
Color : DK. GRAY
# of pins : 10




Pin Circuit Description
1 Q88 14TN/BR LIFTGATE OPEN DRIVER
2 Q203 20OR/TN POSITION SENSOR SUPPLY
3 Q901 20OR/VT LOGIC GROUND
4 Q201 18OR/LG LIFTGATE CLUTCH DRIVER
5 Q901 20OR/VT LOGIC GROUND
6 Q89 14TN/OR LIFTGATE CLOSE DRIVER
7 Q204 20OR/DG POSITION SENSOR SIGNAL 1
8 Q205 20OR/DB POSITION SENSOR SIGNAL 2
9 Z805 18BK/OR GROUND
10 Q51 20OR LIFTGATE FULL OPEN SWITCH SENSE

Component Location - 28
