Installation

INSTALLATION

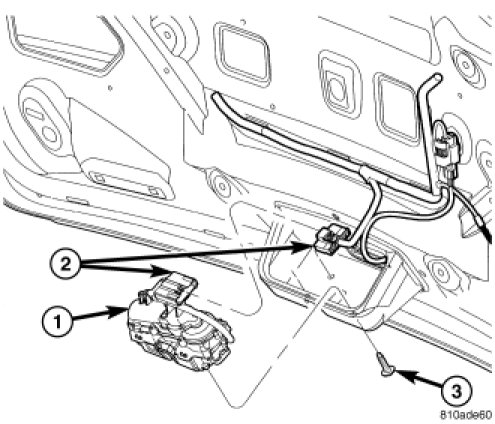

1. Engage link and place latch (1) in position on vehicle.
2. Install screws (3) attaching latch to liftgate. Tighten screws to 11 Nm (95 in. lbs.) torque.
3. Connect wire connector (2) to liftgate latch.
4. Verify liftgate fit and operation. Adjust as necessary.
5. Install the liftgate lower trim panel, Liftgate Trim Panel - Installation.
