Liftgate Latch - Removal
REMOVAL
1.
Remove liftgate
trim panel
.
2.

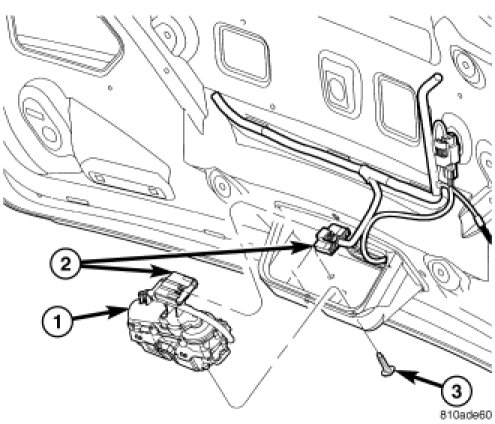

Disengage outside handle link from clip on latch.
3.
Disconnect wire connector from liftgate latch.
4.
Remove screws attaching latch to liftgate.
5.
Remove latch from vehicle.
