Removal







REMOVAL





1. Remove liftgate trim panel. Liftgate Trim Panel - Removal.

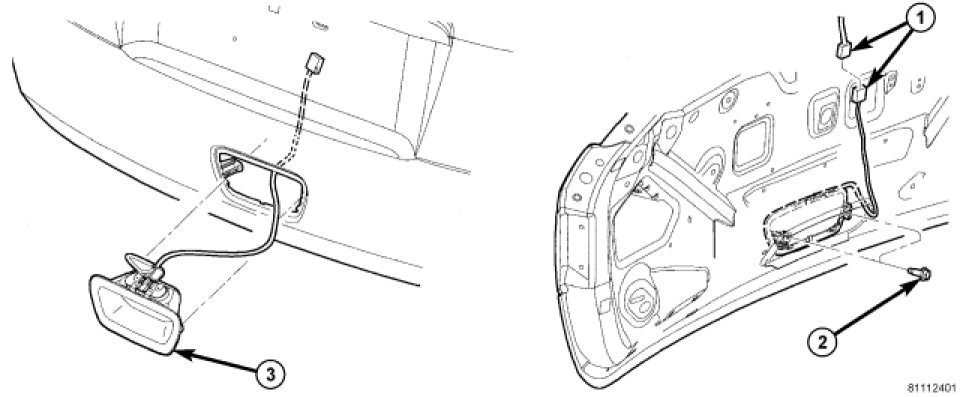

2. Disconnect the exterior handle electrical connectors.
3. Remove the two screws attaching liftgate handle to liftgate inner panel.
4. Remove the exterior handle/license plate light assembly.
