Installation - Body Side







INSTALLATION - BODY SIDE

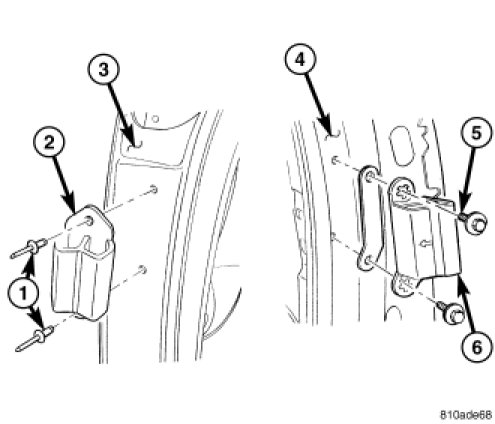

1. Place liftgate slam bumper into position.
2. Install screws attaching liftgate slam bumper to body.
3. Close liftgate.
