Seal-Hood
>>
Removal
Removal

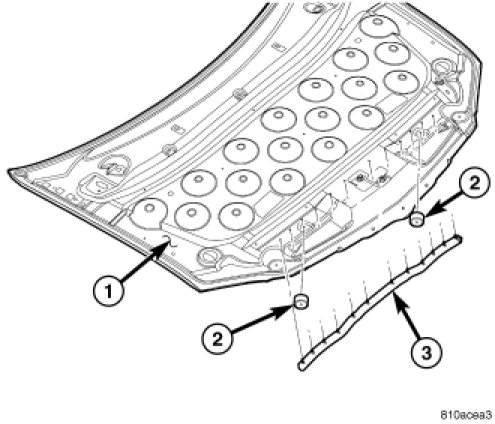

REMOVAL
1.
Open
hood
.
2.
Remove
hood
seal.
3.
Using a Trim Stick C-4755 or equivalent, disengage the
hood
seal push pins from the hood.
