Hood Stop
>>
Service and Repair
>>
Installation
Installation

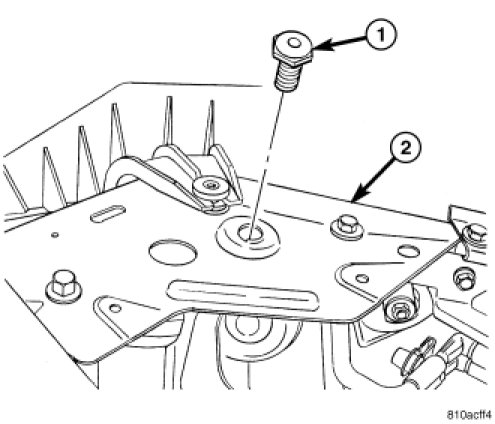

INSTALLATION
1.
Place adjustment
bumper
into position.
2.
Turn adjustment
bumper
in about half way.
3.
Easily close
hood
to check height of hood. Check hood gap and flush.
4.
Adjust as necessary.
5.
Close
hood
.
