Hood Latch - Installation

INSTALLATION





NOTE: The latch is keyed to the crossmember with tabs stamped out of the crossmember. Vertical adjustment will require flattening the tabs.

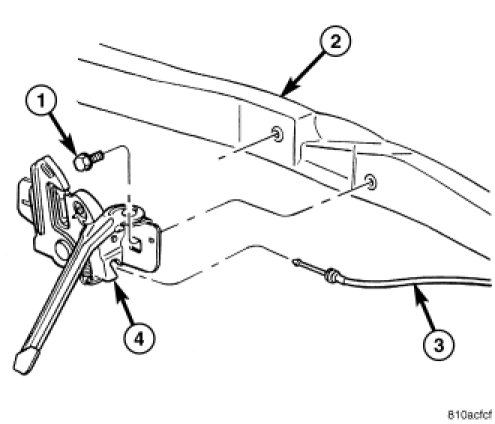

1. Place hood latch into position.
2. Connect hood release cable.
3. Install hood latch screws. to radiator crossmember.
4. Tighten latch screws to 14 Nm (120 in. lbs.) torque.
5. Install radiator closure. Installation.
6. Close hood and verify hood operation and alignment.
