Removal







REMOVAL

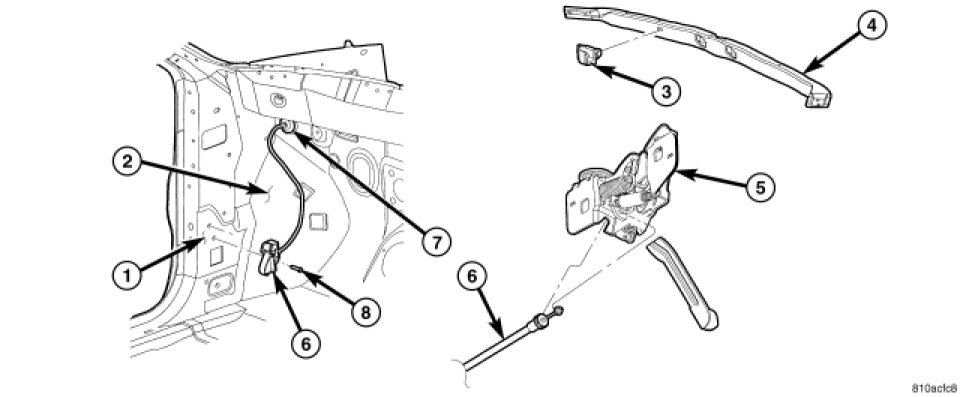

1. Unlatch hood and open.
2. Disconnect remote hood release cable from hood latch. Hood Latch - Removal.

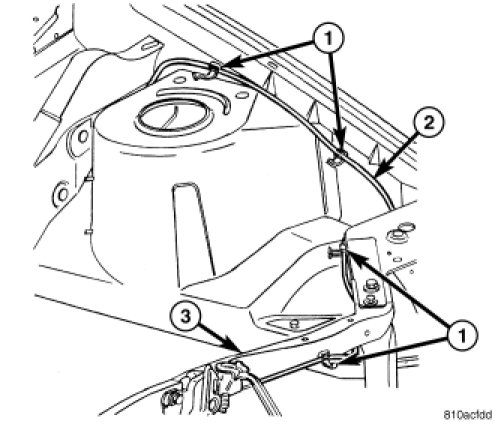

3. Release any remote hood cable attachments and free cable.
4. Remove left front cowl trim panel.
5. Remove screws attaching hood release handle to cowl panel and release cable from clip.
6. Disconnect rubber grommet from dash panel behind instrument panel.
7. Pull release cable through hole in dash panel.
8. Remove cable and handle from vehicle.
