Front Door - Removal

REMOVAL





1. Remove front wheelhouse splash shield and silencer/stuffer Front Wheelhouse Splash Shield - Removal.

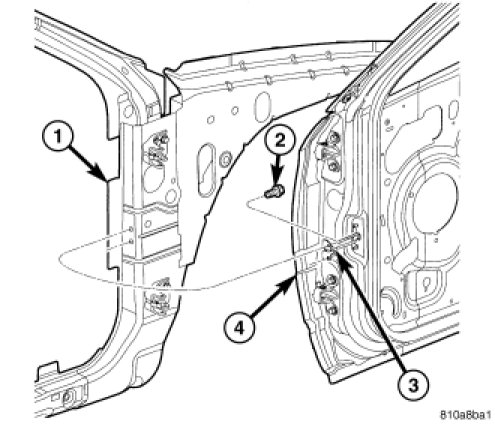

2. Remove screws attaching door check strap to A-pillar.

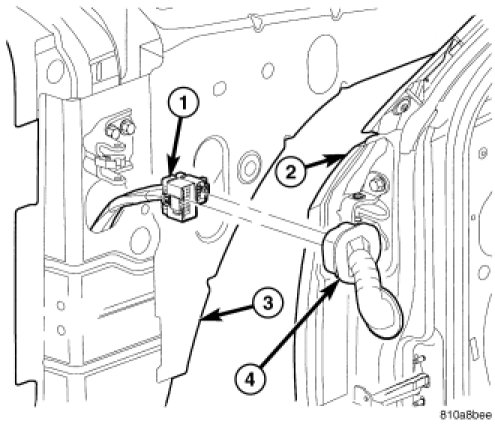

3. Disengage clips attaching door harness wire connector to inner fender brace.




4. Disconnect positive lock slide on the side of the wire connectors.
5. Depress lock tab attaching wire connector halves together.

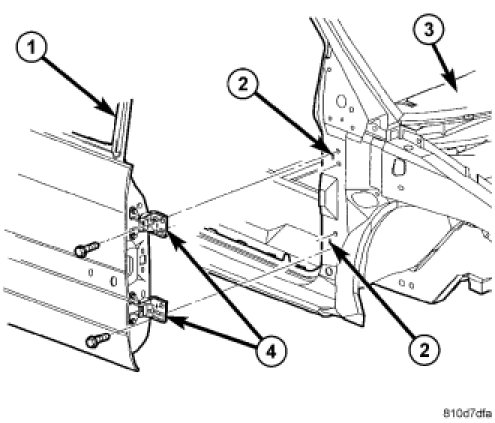

6. Disconnect door harness from body wiring harness.
7. Support door on suitable lifting device.




8. Remove bolts attaching lower hinge to door end frame.
9. Steady door on lifting device and remove bolts attaching upper hinge to door end frame.
10. Remove door from vehicle.
