Rear Bumper Reinforcement - Removal

REMOVAL





1. Remove rear bumper fascia Rear Fascia - Removal.
2. Support rear bumper reinforcement on a suitable lifting device.

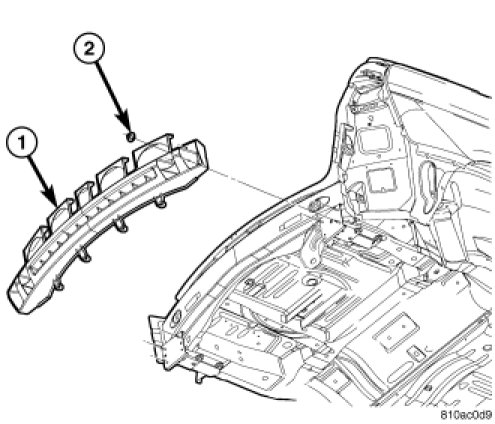

3. Remove the six nuts (2) attaching rear bumper reinforcement (1) to frame rail extensions.
4. Remove rear bumper reinforcement from vehicle.
