Speaker - Removal

REMOVAL

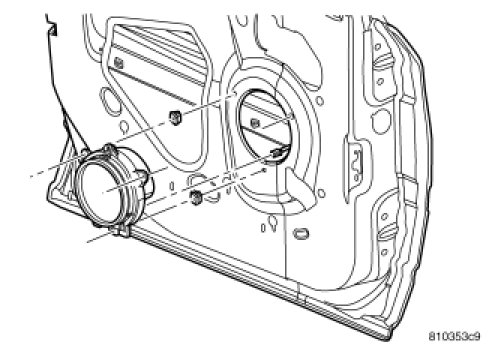

FRONT DOOR SPEAKER





1. Disconnect and isolate the battery negative cable.
2. Remove the front door trim panel Front Door Trim Panel - Removal.
3. Remove the mounting fasteners.
4. Disconnect the electrical harness connector and remove speaker.

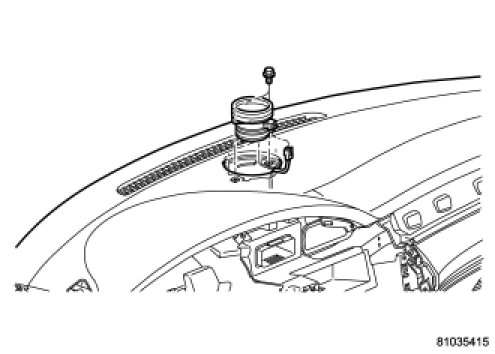

INSTRUMENT PANEL SPEAKER





1. Disconnect and isolate the battery negative cable.
2. Remove speaker grill from instrument panel.
3. Remove mounting fasteners.
4. Disconnect the electrical harness connector and remove speaker.

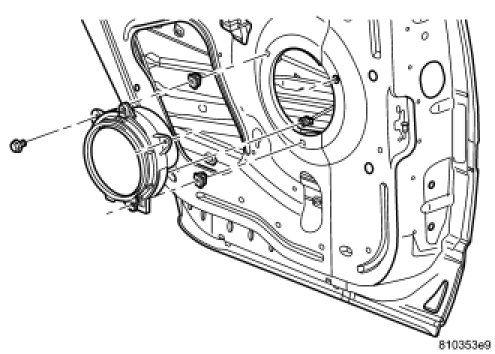

REAR DOOR SPEAKER





1. Disconnect and isolate the battery negative cable.
2. Remove the rear door trim panel Rear Door Trim Panel - Removal.
3. Remove the mounting fasteners.
4. Disconnect the electrical harness connector and remove speaker.

SUBWOOFER

1. Disconnect and isolate the battery negative cable.
2. Using a trim stick (Special tool C-4755) or equivalent, carefully pry at the rear of the speaker grille and remove.
3. Remove mounting fasteners.
4. Disconnect wire harness connectors and remove speaker.

TWEETER





1. Disconnect and isolate the battery negative cable.
2. Remove the front door trim panel Front Door Trim Panel - Removal.
3. Remove mounting fasteners.
4. Disconnect wire harness connector and remove speaker.
