Speaker-Left Front Door-Woofer

Component ID: 384
Component : SPEAKER-LEFT FRONT DOOR-WOOFER

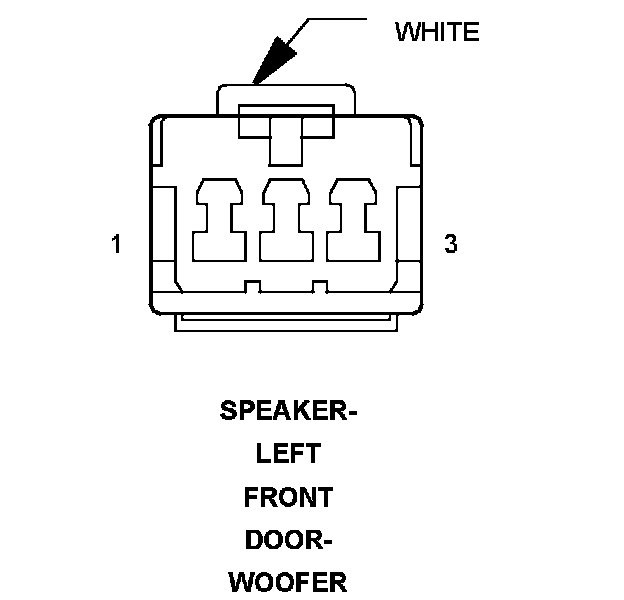

Connector:
Name : SPEAKER-LEFT FRONT DOOR-WOOFER
Color : WHITE
# of pins : 3




Pin Circuit Description
1 X201 18GY/VT AMPLIFIED LEFT FRONT DOOR SPEAKER (+)
2 - -
3 X291 18GY/YL AMPLIFIED LEFT FRONT DOOR SPEAKER (-)

Component Location - 40
