Speaker-Left Front Door-Tweeter

Component ID: 383
Component : SPEAKER-LEFT FRONT DOOR-TWEETER

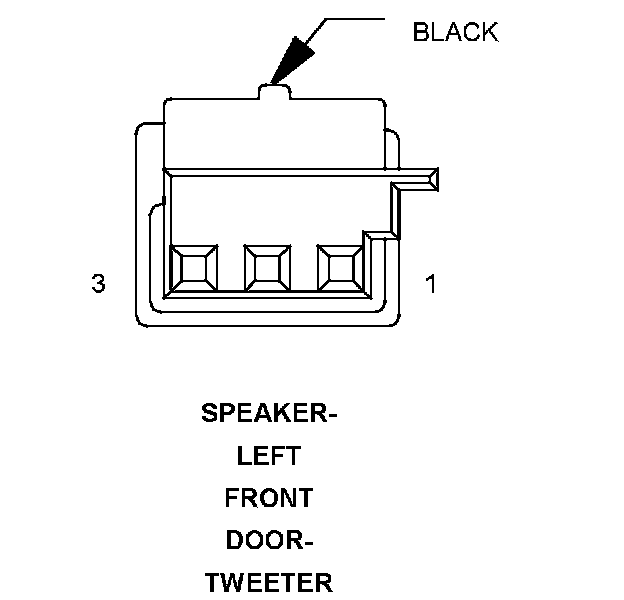

Connector:
Name : SPEAKER-LEFT FRONT DOOR-TWEETER
Color : BLACK
# of pins : 3




Pin Circuit Description
1 X201 20GY/VT AMPLIFIED LEFT FRONT DOOR SPEAKER (+)
2 - -
3 X291 20GY/YL AMPLIFIED LEFT FRONT DOOR SPEAKER (-)

Component Location - 40
