Removal







REMOVAL





1. Disconnect and isolate the battery negative cable.
2. Remove the instrument panel center bezel. Instrument Panel Center Bezel - Removal.
3. Remove the HVAC control unit. A/C Heater Control - Removal.

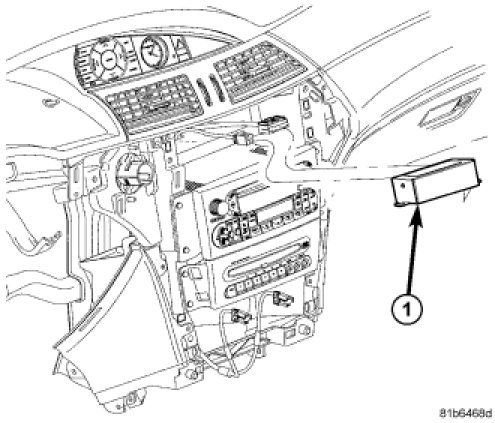

4. Remove the multiplexer and disconnect the electrical connectors.
