Removal

REMOVAL





1. Open hood.
2. Disconnect and isolate the battery negative cable.
3. Open liftgate.
4. Lower the headliner in the rear of the vehicle in the liftgate opening. Follow the headliner removal procedure for the rear of the headliner Headliner - Removal.

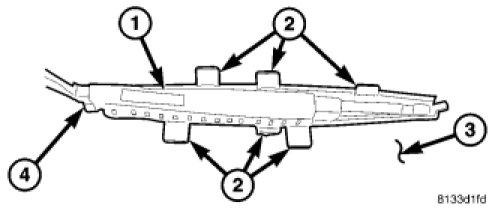

5. Bend the retaining tabs (2) upwards to allow the park assist display (1) to drop out of the headliner (3) opening.
6. Disconnect the display electrical connector (4) and remove from vehicle.
