Parking Assist Control Module: Locations

Component ID: 187

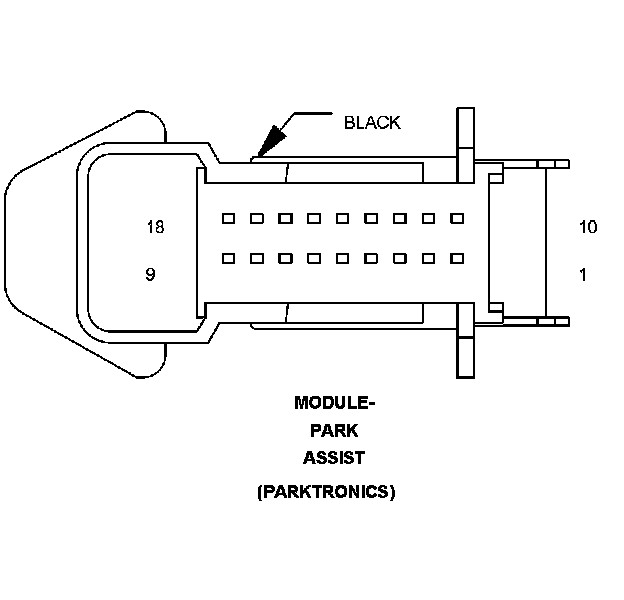

Component : MODULE-PARK ASSIST

Connector:
Name : MODULE-PARK ASSIST
Color : BLACK
# of pins : 18
Qualifier : (PARKTRONICS)




Pin Circuit Description
1 X700 20GY/OR PARK ASSIST SENSOR SUPPLY
2 D703 20WT/OR PARK ASSIST SENSOR NO. 9 SIGNAL
3 D704 20WT/DB PARK ASSIST SENSOR NO. 10 SIGNAL
4 X777 20DG/GY PARK ASSIST DISPLAY SUPPLY
5 D777 20WT/GY PARK ASSIST DISPLAY SIGNAL
6 Z171 20GY/BK PARK ASSIST DISPLAY GROUND
7 - -
8 - -
9 - -
10 F500 18DG/PK FUSED IGNITION SWITCH OUTPUT (RUN-START)
11 Z177 20DG/BK GROUND
12 D25 20WT/VT PCI BUS
13 - -
14 - -
15 - -
16 D700 20WT/GY PARK ASSIST SENSOR NO. 7 SIGNAL
17 D701 20WT/LB PARK ASSIST SENSOR NO. 8 SIGNAL
18 X750 20GY/LB PARK ASSIST SENSOR GROUND

Component Location - 28
