VTSS Does Not Trip From Passenger Front Door

*VTSS DOES NOT TRIP FROM PASSENGER FRONT DOOR

For a complete wiring diagram Consult Diagrams/Electrical





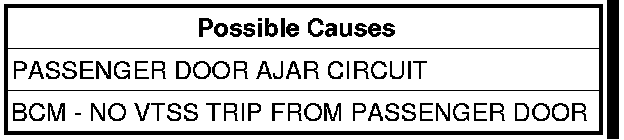

Diagnostic Test

1. CHECK DOOR AJAR STATUS

NOTE: For the results of this test to be valid, the security system must arm and flash the VTSS indicator properly.

With the scan tool under Passenger Door Module, read the Door Status.
Open the passenger door.
Does the scan tool display PASSENGER DOOR AJAR SW: CLOSED?

Yes

- Replace and program the Body Control Module.
- Perform VTSS VERIFICATION TEST - 1A. Vehicle Theft Security Verification Tests

No

- Refer to symptom PASSENGER DOOR AJAR CKT OPEN. Passenger Door Ajar Circuit Open
- Perform VTSS VERIFICATION TEST - 1A. Vehicle Theft Security Verification Tests
