VTSS Does Not Trip From Left Rear Door

*VTSS DOES NOT TRIP FROM LEFT REAR DOOR

For a complete wiring diagram Consult Diagrams/Electrical





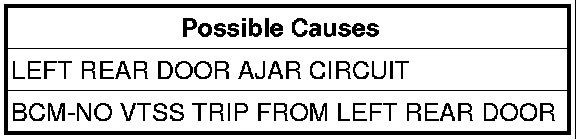

Diagnostic Test

1. CHECK DOOR AJAR STATUS

NOTE: For the results of this test to be valid, the security system must arm and flash the VTSS indicator properly.

With the scan tool, read the Left Rear Door Ajar SW status.
Open the left rear door.
Does the scan tool display LEFT REAR DOOR AJAR SW: CLOSED?

Yes

- Replace and program the Body Control Module.
- Perform VTSS VERIFICATION TEST - 1A. Vehicle Theft Security Verification Tests

No

- Refer to symptom LEFT REAR DOOR AJAR CKT OPEN. Left Rear Door Ajar Circuit Open
- Perform VTSS VERIFICATION TEST - 1A. Vehicle Theft Security Verification Tests
