PDM-2E

PDM-2E-PASSENGER REAR WINDOW SWITCH MUX INPUT SHORT TO GROUND





For a complete wiring diagram Consult Diagrams/Electrical

- When Monitored:
Continuously.

- Set Condition:
If the voltage on the (Q2) Passenger Rear Window Switch Mux circuit is below 0.1 volt for over 1 second, this code will set.





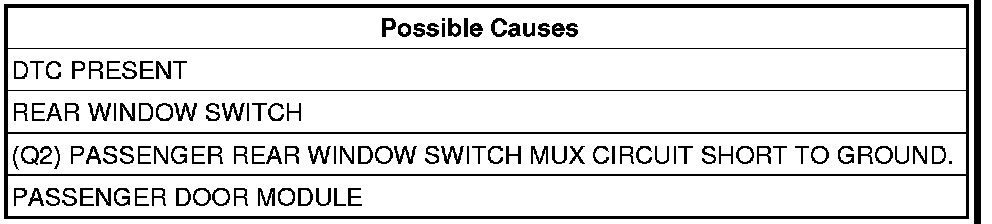

Diagnostic Test

1. DTC PRESENT
Turn the ignition on.
With the scan tool, erase DTCs.
Cycle the ignition switch from Off to Run.
Check for any possible obstructions with the rear switch and correct if necessary.
Operate the Rear Window Switch in all positions several times.
With the scan tool, read DTCs.
Does the scan tool display 2E-PASSENGER REAR WINDOW SWITCH MUX CIRCUIT SHORT TO GROUND?

Yes

- Go To 2

No

- The condition that caused this code to set is not present at this time. Operate the rear switch several times to ensure it does not stick. If the switch ever sticks again, replace it.
- PERFORM BODY VERIFICATION TEST - VER 1. Body Verification Test

2. REAR WINDOW SWITCH

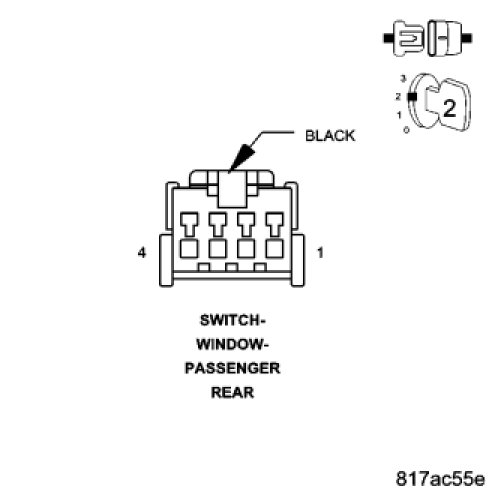

Disconnect the Passenger Rear Window Switch connector.
Turn the ignition on.
With the scan tool, erase DTCs.
Cycle the ignition switch from Off to Run.
With the scan tool, read DTCs.
Does the scan tool display 2E-PASSENGER REAR WINDOW SWITCH MUX CIRCUIT SHORT TO GROUND?

Yes

- Go To 3

No

- Replace the Rear Window Switch.
- PERFORM BODY VERIFICATION TEST - VER 1. Body Verification Test

3. (Q2) PASSENGER REAR WINDOW SWITCH MUX CIRCUIT PARTIAL SHORT TO GROUND.




Turn the ignition off.

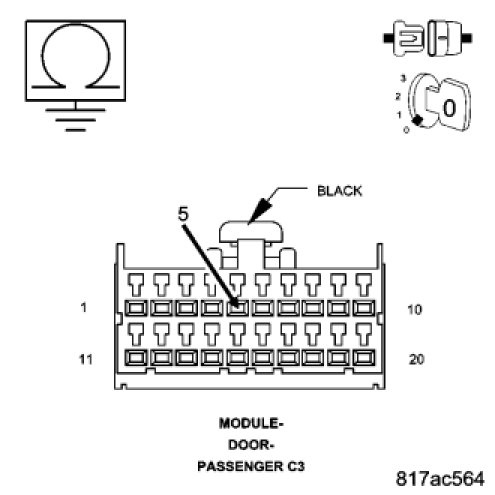

Disconnect the Passenger Door Module C3 connector.
Measure the resistance between ground and the (Q2) Passenger Rear Window Switch Mux circuit.
Is the resistance below 100.0 ohms?

Yes

- Repair the (Q2) Passenger Rear Window Switch Mux circuit for a short to ground.
- PERFORM BODY VERIFICATION TEST - VER 1. Body Verification Test

No

- Replace the Passenger Door Module.
- PERFORM BODY VERIFICATION TEST - VER 1. Body Verification Test
