PDM-26

PDM-26-PASSENGER RECLINE SWITCH STUCK





For a complete wiring diagram Consult Diagrams/Electrical

- When Monitored:
Continuously.

- Set Condition:
If the switch is held in the on position for over 30 seconds, this code will set.





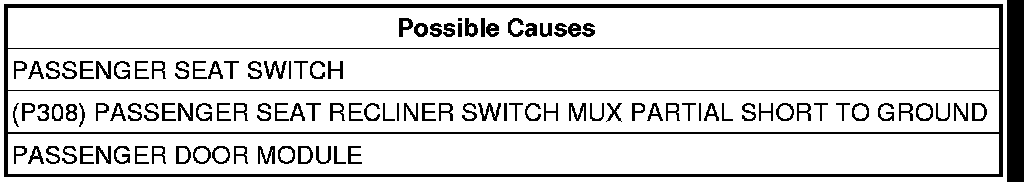

Diagnostic Test

1. DTC PRESENT
Turn the ignition on.
With the scan tool, erase DTCs.
Cycle the ignition switch from Off to Run.
Operate the suspect switch in both positions several times.
With the scan tool, read DTCs.
Does the scan tool display 26-PASSENGER RECLINE SWITCH STUCK?

Yes

- Go To2

No

- The condition that caused this code to set is not present at this time.
- PERFORM POWER SEAT SYSTEM VERIFICATION TEST - VER 1. Power Seat System Verification Test

2. SEAT SWITCH
Disconnect the Passenger Seat Switch connector.
Turn the ignition on.
With the scan tool, erase DTCs.
Cycle the ignition switch from Off to Run and wait 30 seconds.
With the scan tool, read DTCs.
Does the scan tool display 26-PASSENGER RECLINER SWITCH STUCK?

Yes

- Go To3

No

- Replace the Power Seat Switch.
- PERFORM POWER SEAT SYSTEM VERIFICATION TEST - VER 1. Power Seat System Verification Test

3. (P308) PASSENGER SEAT RECLINER SWITCH MUX CIRCUIT SHORT TO GROUND.




Turn the ignition off.
Disconnect the Passenger Seat Switch connector.
Disconnect the Passenger Door Module C2 connector.
Inspect the (P308) Passenger Seat Recliner Switch MUX circuit for a partial short to ground or to another circuit in the seat switch harness.
Were there any problems found?

Yes

- Repair the (P308) Passenger Seat Recliner Switch MUX circuit for a short to ground.
- PERFORM POWER SEAT SYSTEM VERIFICATION TEST - VER 1. Power Seat System Verification Test

No

- Replace the Passenger Door Module.
- PERFORM BODY VERIFICATION TEST - VER 1. Body Verification Test
