PDM-1A

PDM-1A-PASSENGER MIRROR HORIZONTAL SENSOR STUCK

For a complete wiring diagram Consult Diagrams/Electrical

- When Monitored:
During memory system recall.

- Set Condition:
If the mirror does not reach it's memory set target in 10 seconds, this code will set.

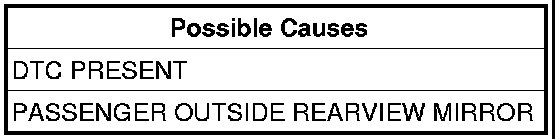

Diagnostic Test

1. DTC PRESENT
Turn the ignition on.
With the scan tool, erase DTCs.
Cycle the ignition switch from Off to Run.
Operate the mirror with the memory system several times.
With the scan tool, read DTCs.
Does the scan tool display the same DTC?

Yes

- Check for an obstruction in the mirror rotation path, if OK replace the mirror.
- PERFORM BODY VERIFICATION TEST - VER 1.Body Verification Test

No

- The condition that caused this code to set is not present at this time.
- PERFORM BODY VERIFICATION TEST - VER 1.Body Verification Test
