PDM-13

PDM-13-PASSENGER DOOR LOCK SWITCH SHORTED - PDM

For a complete wiring diagram Consult Diagrams/Electrical

- When Monitored:
Whenever the Passenger Door Module is awake.

- Set Condition:
If the analog switch inside the Passenger Door Module is shorted, this code will set.

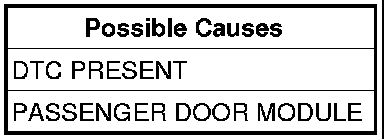

Diagnostic Test

1. DTC PRESENT
With the scan tool, record and erase DTC's.
Cycle the ignition switch from ON to OFF to ON.
With the scan tool, read DTC's.
Operate the Passenger Door Lock Switch several times while observing the scan tool.
Wait 10 seconds.
Does the scan tool display 13-PASSENGER DOOR LOCK SWITCH SHORTED?

Yes

- Replace the Passenger Door Module.
- Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test.

No

- Ensure the switch moves freely. If it does not, replace the Passenger Door Module.
- Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test.
