DDM-5A

DDM-5A-LIN WINDOW MOTOR CALIBRATION FAILURE





For a complete wiring diagram Consult Diagrams/Electrical

- When Monitored:
During a window operation command.

- Set Condition:
The LIN module is missing the calibration set in the EEPROM for over one second.

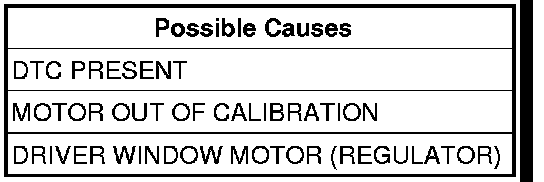

Diagnostic Test

1. DTC PRESENT
Turn the ignition on.
With the scan tool, erase DTCs.
Cycle the ignition switch from Off to Run.
Operate the driver window switch in all positions several times.
With the scan tool, read DTCs.
Does the scan tool display 5A-LIN WINDOW MOTOR CALIBRATION FAILURE?

Yes

- Go To 2

No

- The condition that caused this code to set is not present at this time. Operate the motor several times more to ensure it does not fail. If the code returns, replace the Driver Window Motor (regulator).
- PERFORM the BODY VERIFICATION TEST - VER 1. Body Verification Test.

2. MOTOR OUT OF CALIBRATION
Run the window motor all the way down then all the way up. Hold the switch in full up position for 1 second after the window reaches the full up position.
With the scan tool, erase DTCs.
Cycle the ignition switch from Off to Run.
Operate the driver window switch in all positions several times.
With the scan tool, read DTCs.
Does the scan tool display 5A-LIN WINDOW MOTOR CALIBRATION FAILURE?

Yes

- Replace the Driver Window Motor (regulator).
- PERFORM the BODY VERIFICATION TEST - VER 1. Body Verification Test.

No

- Test complete.
- PERFORM the BODY VERIFICATION TEST - VER 1. Body Verification Test.
