DDM-43

DDM-43-PASSENGER REAR WINDOW SWITCH STUCK DOWN

For a complete wiring diagram Consult Diagrams/Electrical

- When Monitored:
Continuously.

- Set Condition:
If the DDM Passenger Rear Window Switch is held in the Up position for over 15 seconds, this code will set.

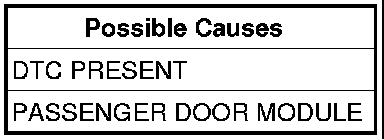

Diagnostic Test

1. DTC PRESENT
Turn the ignition on.
With the scan tool, erase DTCs.
Cycle the ignition switch from Off to Run.
Check for any possible obstructions with the switch and correct if necessary.
Operate the switch in both the Up and Down positions several times.
With the scan tool, read DTCs.
Does the scan tool display 43-PASSENGER REAR WINDOW SWITCH STUCK DOWN?

Yes

- Replace the Passenger Door Module.
- Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test.

No

- The condition that caused this code to set is not present at this time. Operate the switch several times to ensure it does not stick. If the switch ever sticks, replace the Passenger Door Module.
- Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test.
