DDM-3D

DDM-3D-DRIVER REAR WINDOW EXPRESS DOWN SWITCH STUCK

For a complete wiring diagram Consult Diagrams/Electrical

- When Monitored:
Continuously.

- Set Condition:
If the switch is held in the Express Down position for over 15 seconds, this code will set.

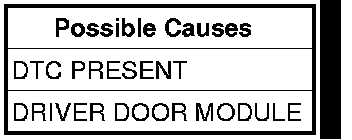

Diagnostic Test

1. DTC PRESENT
Turn the ignition on.
With the scan tool, erase DTCs.
Cycle the ignition switch from Off to Run.
Check for any possible obstructions or sticky material within the switch and correct as necessary.
Operate the DDM Driver Rear Window Switch in all positions several times.
With the scan tool, read DTCs.
Does the scan tool display 3D-DRIVER REAR WINDOW EXPRESS DOWN SWITCH STUCK?

Yes

- Replace the Driver Door Module.
- PERFORM BODY VERIFICATION TEST - VER 1. Body Verification Test

No

- The condition that caused this code to set is not present at this time. Operate the switch several times to ensure it does not stick. If the switch ever sticks, replace the Driver Door Module.
- PERFORM BODY VERIFICATION TEST - VER 1. Body Verification Test
