No Antenna Connection

NO ANTENNA CONNECTION

For a complete wiring diagram Consult Diagrams/Electrical

- When Monitored:
With the ignition on and the radio in seek up/down mode.

- Set Condition:
With the radio in seek mode for two minutes and the radio does not detect an antenna connection or does not receive a radio station signal.

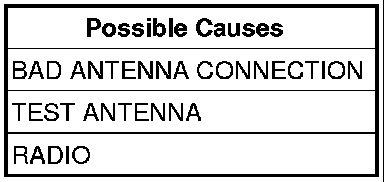

Diagnostic Test

1. BAD ANTENNA CONNECTION
Turn the ignition off.
Disconnect the Radio Antenna connector.
Inspect the Radio Antenna connection.
Was the Antenna connection clean and tight?

Yes

- Go To2

No

- Repair Antenna connection as needed.
- Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test.

2. TEST ANTENNA
Refer to the Audio System and test the Antenna in accordance with the service procedure.
Is the Antenna ok?

Yes

- Go To3

No

- Repair or replace the Antenna assembly as necessary.
- Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test.

3. RADIO

NOTE: Reconnect all previously disconnected components.

Turn the ignition and Radio on.

NOTE: Move vehicle outside approximately 30ft from any structure.

With the scan tool, erase the audio DTC's, put the radio in seek up and seek down mode for approximately 2 minutes before proceeding.
With the scan tool, read the audio DTC's.
Did this DTC reset?

Yes

- Replace the Radio.
- Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test.

No

- Test Complete.
