C1219

C1219-STEERING ANGLE SENSOR ERRATIC PERFORMANCE





For a complete wiring diagram Consult Diagrams/Electrical.

- When Monitored:
With the ignition on.

- Set Condition:
When the Anti-Lock Brake Module detects to rapid of a change in the Steering Angle Sensor.





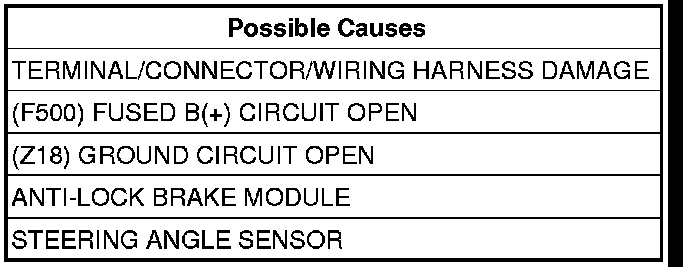

Diagnostic Test

1. CHECK FOR A DTC C1219-STEERING ANGLE SENSOR ERRATIC PERFORMANCE
NOTE: This DTC must be active for the results of this test to be valid. Repair all other Steering Angle Sensor codes before proceeding.

Turn the ignition on.
With the scan tool, read and record DTCs.
With the scan tool, read and record Freeze Frame information.
With the scan tool, erase DTCs.
Test drive the vehicle by turning the vehicle left or right in a curving manner at a velocity between 10 and 25 km/hr (6 and 15 mph.).
Park the vehicle.
With the scan tool, read and record DTCs.
Does the scan tool display: C1219-Steering Angle Sensor ERRATIC PERFORMANCE?

Yes

- Go To 2

No

- Perform the ABS Intermittent Condition diagnostic procedure.
- REFER TO the ABS-INTERMITTENT CONDITION TEST. ABS Intermittent Condition Test

2. CHECK FOR STEERING ANGLE SENSOR ERRATIC SIGNAL
With the scan tool, graph Steering Angle while turning the steering wheel from lock to lock.
Is Steering Angle Signal erratic?

Yes

- Replace Steering Angle Sensor.
- PERFORM ABS VERIFICATION TEST. ABS Verification Test

No

- Go To 3

3. CHECK THE TERMINALS/CONNECTORS/WIRING HARNESS FOR DAMAGE
WARNING: To avoid personal injury or death, on vehicles equipped with airbags, disable the supplemental restraint system before attempting any steering wheel, steering column, airbag, occupant classification system, seat belt tensioner, impact sensor, or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the supplemental restraint system. Failure to take the proper precautions could result in accidental airbag deployment.

NOTE: Proper Steering Angle Sensor installation is crucial for proper operation.

Check the Steering Angle Sensor installation.
Check all related wiring for bruised, chafed, pierced, or partially broken wires.
Check all related connectors for broken, bent, pushed out, or corroded terminals.
Were any problems found?

Yes

- Repair as necessary.
- PERFORM ABS VERIFICATION TEST. ABS Verification Test

No

- Go To 4

4. CHECK THE VOLTAGE ON THE (F500) FUSED B(+) CIRCUIT




Turn the ignition off.
Disconnect the Steering Angle Sensor harness connector.
Turn the ignition on.
Measure the voltage of the (F500) Fused B(+) circuit.
Is the voltage above 10 volts?

Yes

- Go To 5

No

- Repair the (F500) Fused B(+) circuit for an open.
- PERFORM ABS VERIFICATION TEST. ABS Verification Test

5. CHECK THE RESISTANCE OF THE (Z18) GROUND CIRCUIT




Turn the ignition off.
Measure the resistance between the (Z18) Ground circuit and ground.
Is the resistance below 5.0 ohms?

Yes

- Replace Anti-Lock Brake Module.
- PERFORM ABS VERIFICATION TEST. ABS Verification Test

No

- Repair the (Z18) Ground circuit for an open.
