Power Liftgate

B210E-BATTERY VOLTAGE HIGH

For a complete wiring diagram Consult Diagrams/Electrical.

- When Monitored:
When power opening or closing operations are not occurring.

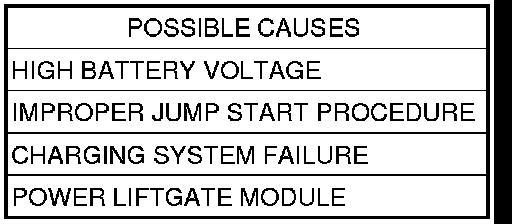

- Set Condition:
The Power Liftgate Module senses voltage input above 16.0 volts when a power opening or closing operation is not occurring.





Diagnostic Test

1. CHECK ENGINE DTC's
With the scan tool, read ENGINE DTC's
Are there any ENGINE DTC's present?

No

- Go To 2

Yes

- Diagnose and repair the DTC(s).

2. TEST FOR INTERMITTENT CONDITION
With the scan tool, record and erase DTC's
Start the engine and run for two minutes.
With the scan tool, read DTC's.
Does the scan tool display B210E-BATTERY VOLTAGE HIGH?

Yes

- Replace the Power Liftgate Module.
- PERFORM BODY VERIFICATION TEST - VER 1. Body Verification Test

No

- The conditions that caused this code to set are not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
- PERFORM BODY VERIFICATION TEST - VER 1. Body Verification Test
