B1D5D

B1D5D-ADJUSTABLE PEDAL SWITCH CIRCUIT STUCK REARWARD





For a complete wiring diagram Consult Diagrams/Electrical.

- When Monitored:
The Adjustable Pedals Switch is in active operation.

- Set Condition:
The Seat Memory Module detects that the Adjustable Pedals Switch has been activated for a time period of more than 50 seconds.





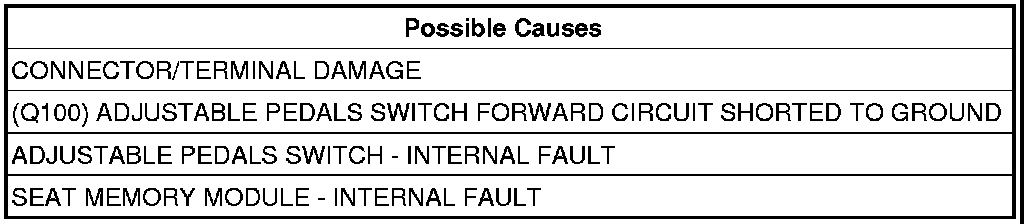

Diagnostic Test

1. CHECK FOR DTC B1D5D-ADJUSTABLE PEDAL SWITCH CIRCUIT STUCK REARWARD
NOTE: This DTC must be active for the results of this test to be valid.

Turn the ignition on.
With the scan tool, record and erase DTCs.
Cycle the ignition switch from off to on.
Cycle the Adjustable Pedals Switch forward and rearward.
With the scan tool, read DTCs.
Does the scan tool display: B1D5D-ADJUSTABLE PEDAL SWITCH CIRCUIT STUCK REARWARD?

Yes

- Go To 2

No

- Refer to the INTERMITTENT CONDITION diagnostic procedure. Checking For An Intermittent DTC.
- PERFORM APS VERIFICATION TEST. APS Verification Test

2. CHECK CONNECTOR/TERMINAL FOR DAMAGE

NOTE: Check all terminals for broken, bent, pushed out, or corroded terminals.

Turn the ignition off.
Inspect the Seat Memory Module harness connector, Adjustable Pedals Switch, and Adjustable Pedals Switch harness connector.
Is the Adjustable Pedals Switch or any of the connectors/terminals damaged?

Yes

- Repair as necessary.
- PERFORM APS VERIFICATION TEST. APS Verification Test

No

- Go To 3

3. CHECK (Q100) ADJUSTABLE PEDALS SWITCH REARWARD CIRCUIT FOR A SHORT TO GROUND




Disconnect the Seat Memory Module harness connector.
Disconnect the Adjustable Pedals Switch harness connector.
Using a 12-volt test light connected to 12-volts, probe the (Q100) Adjustable Pedals Switch Rearward circuit at the Memory Seat Module C5 harness connector.
Does the test light illuminate brightly?

Yes

- Repair the (Q100) Adjustable Pedals Switch Rearward circuit for a short to ground.
- PERFORM APS VERIFICATION TEST. APS Verification Test

No

- Go To 4

4. CHECK ADJUSTABLE PEDALS SWITCH SHORTED

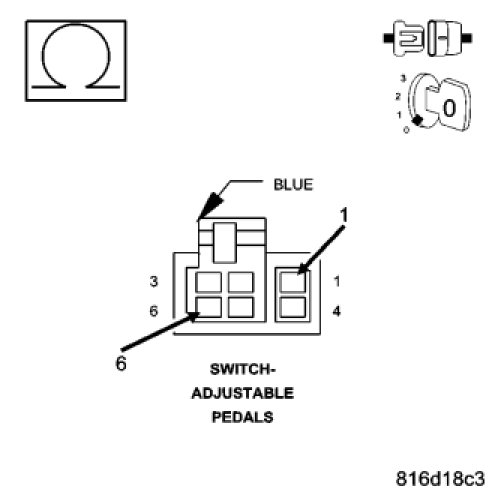

Measure the resistance between the (Q100) Adjustable Pedals Switch Rearward and (Q900) Adjustable Pedals Switch Forward terminals at the Adjustable Pedals Switch harness connector.
Is the resistance below 5.0 ohms?

Yes

- Replace and reprogram the Seat Memory Module.
- PERFORM APS VERIFICATION TEST. APS Verification Test

No

- Replace the Adjustable Pedals Switch.
- PERFORM APS VERIFICATION TEST. APS Verification Test
