B1971

B1971-POWER LIFTGATE LATCH CINCH - RATCHET PRIMARY SWITCH PERFORMANCE

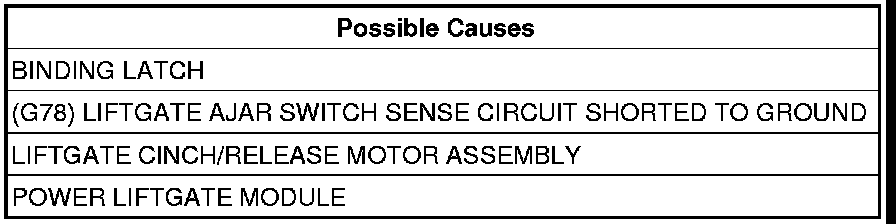

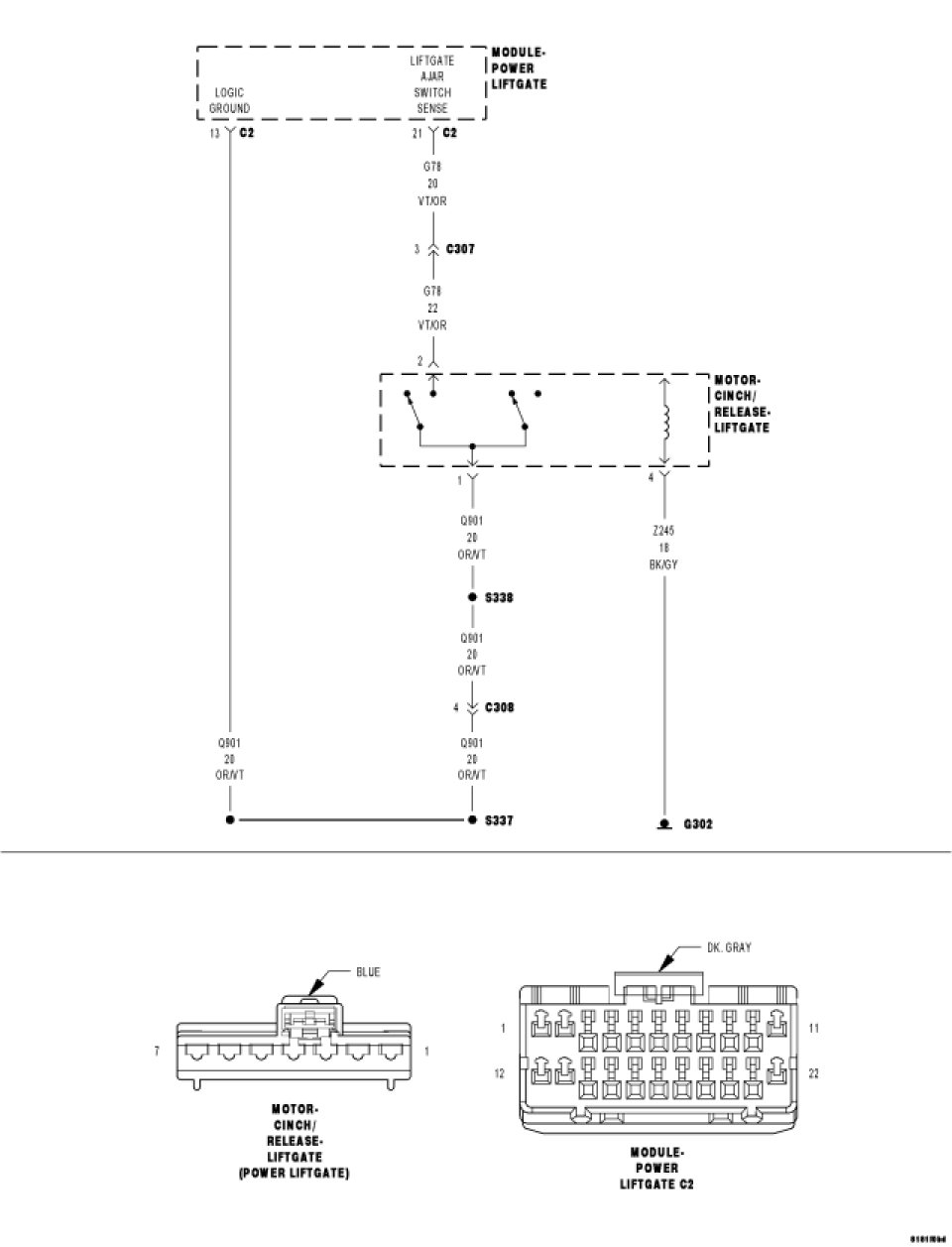

For a complete wiring diagram Consult Diagrams/Electrical

- When Monitored:
Whenever the power liftgate is performing a cinching operation.

- Set Condition:
The ratchet primary switch does not transition to open circuit during a power cinching operation.





Diagnostic Test

1. DTC PRESENT

NOTE: This DTC will only set during the cinching operation after the four second time out. This may make it difficult to reproduce.

With the scan tool, record and erase DTC's.
Turn the ignition off, wait 10 seconds, then turn the ignition on.
Operate the power liftgate several times if possible.
With the scan tool, read ACTIVE DTCs.
Does the scan tool display B1971-POWER LIFTGATE LATCH CINCH - RATCHET PRIMARY SWITCH PERFORMANCE?

Yes

- Go To 2

No

- Using the wiring diagram/schematic as a guide, inspect the wiring and connectors for an intermittent condition. Operate the door several times and check for any binding or other obstructions.
- PERFORM BODY VERIFICATION TEST - VER 1. Body Verification Test

2. BINDING LIFTGATE
Examine the liftgate for proper fit and alignment, loose/hard or torn seals, misaligned latch striker or anything that would cause an obstruction to proper operation.
Manually operate the liftgate of a known good vehicle and notice the effort needed to open and close.
Compare the effort needed on the disabled liftgate.
Especially notice the effort needed to unlatch and close the liftgate.
Does it take more effort to operate the liftgate than it should?

Yes

- Repair accordingly.
- PERFORM BODY VERIFICATION TEST - VER 1. Body Verification Test

No

- Go To 3

3. POWER LIFTGATE MODULE
With the scan tool, monitor the PRIMARY RATCHET SWITCH.
Using a screwdriver, click the latch to the second detent while observing the scan tool.
Unlatch the latch by pressing the handle switch and observe the scan tool for a change of state.
Repeat this step several times while moving the liftgate in different positions and wiggling the harness to check for an intermittent open or shorted circuit.
Did the scan tool show the switch state changing correctly every time?

No

- Go To 4

Yes

- Replace the Power Liftgate Module.
- PERFORM BODY VERIFICATION TEST - VER 1. Body Verification Test

4. (G78) LIFTGATE AJAR SWITCH SENSE WIRE OPEN

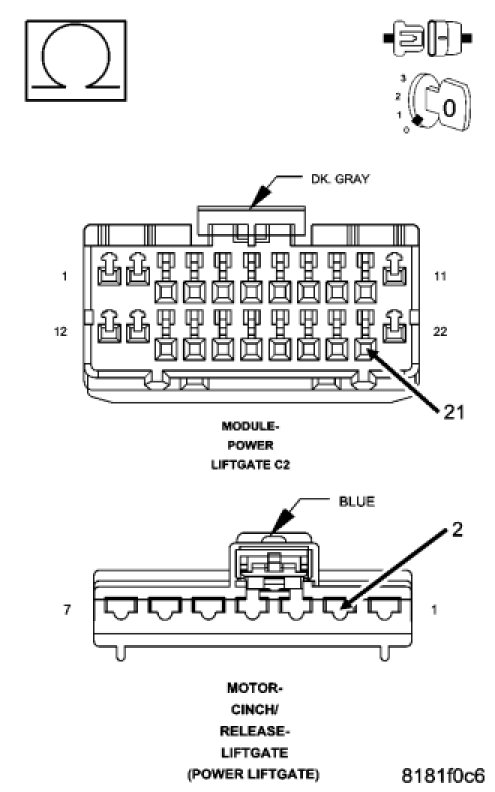

Disconnect the Power Liftgate C2 connector.
Measure the resistance of the (G78) Liftgate Ajar Switch Sense wire between the PLG C2 connector and the Liftgate Latch connector.
Wiggle the harness while observing the ohmmeter.
Is the resistance below 2.0 ohms?

Yes

- Replace the Liftgate Cinch/Release Motor Assembly.
- PERFORM BODY VERIFICATION TEST - VER 1. Body Verification Test

No

- Repair the (G78) Liftgate Ajar Switch Sense wire for an open.
- PERFORM BODY VERIFICATION TEST - VER 1. Body Verification Test
