B196A

B196A-POWER LIFTGATE CLOSE DIRECTION OVERCURRENT





For a complete wiring diagram Consult Diagrams/Electrical

- When Monitored:
Anytime the Power Liftgate is in a power closing operation.

- Set Condition:
The drive motor stall current of over 24 amps has been detected for over 500 ms. during a power closing operation.





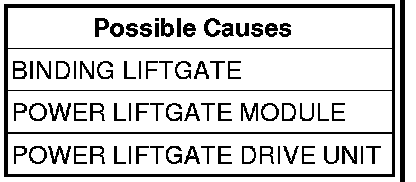

Diagnostic Test

1. DTC PRESENT
With the scan tool, record and erase DTC's.
Turn the ignition off, wait 10 seconds, then turn the ignition on.
Operate the power liftgate several times if possible.
With the scan tool, read DTCs.
Does the scan tool display B196A-POWER LIFTGATE CLOSE DIRECTION OVERCURRENT?

Yes

- Go To 2

No

- Using the wiring diagram/schematic as a guide, inspect the wiring and connectors for an intermittent condition. Operate the liftgate several times and check for any binding conditions.
- PERFORM BODY VERIFICATION TEST - VER 1. Body Verification Test

2. BINDING LIFTGATE
Examine the liftgate for proper alignment, worn or binding hinges, weak liftgate prop assembly, loose/hard weatherstrip, for wear or anything that would cause an obstruction to proper operation.
If necessary manually operate the power liftgate on a known good vehicle and notice the effort needed to open and close for comparison.
Were there any mechanical problems found?

Yes

- Repair accordingly.
- PERFORM BODY VERIFICATION TEST - VER 1. Body Verification Test

No

- Go To 3

3. POWER LIFTGATE DRIVE UNIT
Reconnect all connectors at this time.
Operate the Power Liftgate in both directions if possible.
Does the motor start to lift the liftgate but is very slow and labors extensively?

Yes

- Replace the Power Liftgate Drive Unit assembly.
- PERFORM BODY VERIFICATION TEST - VER 1. Body Verification Test

No

- Replace the Power Liftgate Module.
- PERFORM BODY VERIFICATION TEST - VER 1. Body Verification Test
