B1966

B1966-POWER LIFTGATE SENSOR SUPPLY HIGH





For a complete wiring diagram Consult Diagrams/Electrical

- When Monitored:
Whenever the Power Liftgate Module is awake.

- Set Condition:
The power liftgate module has detected the position sensor supply voltage is above 5.5 volts.





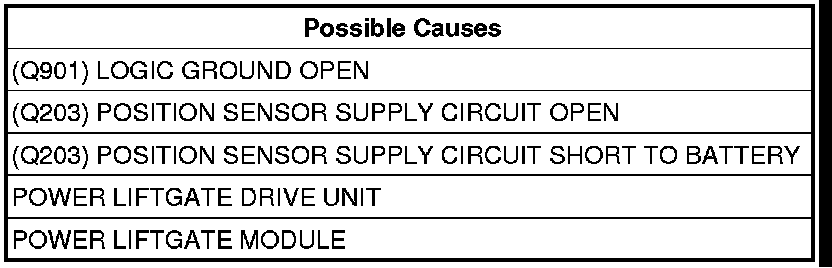

Diagnostic Test

1. DTC PRESENT
With the scan tool, record DTC's and any liftgate inhibitors.
Erase DTC's
Turn the ignition off, wait 10 seconds, then turn the ignition on.
Operate the liftgate several times.
With the scan tool, read DTCs.
Does the scan tool display B1966-POWER LIFTGATE SENSOR SUPPLY HIGH?

Yes

- Go To 2

No

- Using the wiring diagram/schematic as a guide, inspect the wiring and connectors for an intermittent condition.
- PERFORM BODY VERIFICATION TEST - VER 1. Body Verification Test

2. (Q901) LOGIC GROUND OPEN




Turn the ignition off.
Disconnect the Power Liftgate Drive Unit connector.
Measure the resistance between the (Z805) Ground and the (Q901) Logic Ground circuit in the Power Liftgate Drive Unit connector.
Is the resistance below 9.5 ohms?

Yes

- Go To 3

No

- Repair the (Q901) Logic Ground circuit for an open.
- PERFORM BODY VERIFICATION TEST - VER 1. Body Verification Test

3. (Q203) POSITION SENSOR SUPPLY CIRCUIT SHORT TO BATTERY




Turn the ignition on.

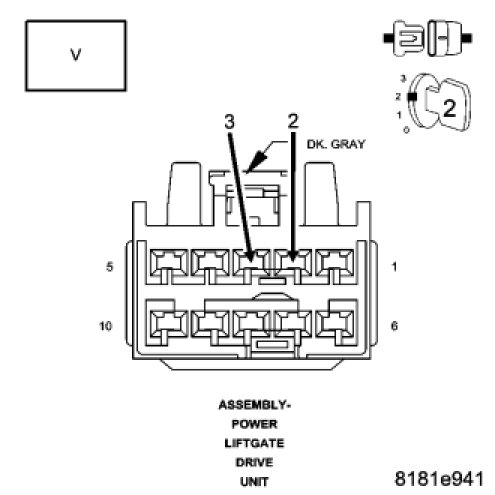

Measure the voltage between the (Q901) Logic Ground circuit and the (Q203) Position Sensor Supply circuit in the Power Liftgate Drive Unit connector.
Is the voltage above 5.5 volts?

Yes

- Repair the (Q203) Position Sensor Supply circuit for a short to battery.
- PERFORM BODY VERIFICATION TEST - VER 1. Body Verification Test

No

- Go To 4


4. (Q203) POSITION SENSOR SUPPLY CIRCUIT OPEN




Turn the ignition off.
Disconnect the Power Liftgate Module C1 connector.

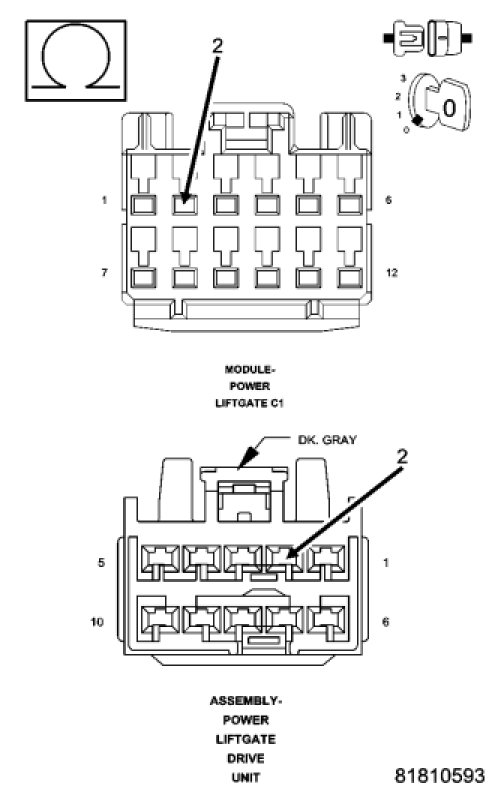

Measure the resistance of the (Q203) Position Sensor Supply circuit between the Power Liftgate Module C1 connector and the Power Liftgate Drive Unit connector.
Is the resistance below 5.0 ohms?

Yes

- Replace the Power Liftgate Module.
- PERFORM BODY VERIFICATION TEST - VER 1. Body Verification Test

No

- Repair the (Q203) Position Sensor Supply circuit for an open.
- PERFORM BODY VERIFICATION TEST - VER 1. Body Verification Test
