B1762

B1762-RIGHT INTERIOR TURN INDICATOR CONTROL CIRCUIT LOW - BCM





For a complete wiring diagram Consult Diagrams/Electrical

- When Monitored:
Output is On.

- Set Condition:
Feedback Sense is high for 125 msec. (Excessive circuit load.)





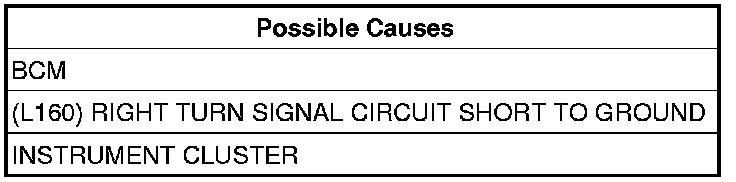

Diagnostic Test

1. BCM




Turn the ignition off.
Disconnect the BCM C4 harness connector.
Turn the ignition on.
With the scan tool, erase DTCs.
Does the scan tool display this DTC as active?

Yes

- Replace the BCM.
- PERFORM BODY VERIFICATION TEST - VER 1. Body Verification Test

No

- Go To2

2. (L160) RIGHT TURN SIGNAL CIRCUIT SHORT TO GROUND




Turn the ignition off.
Disconnect the BCM C4 harness connector.
Disconnect the Instrument Cluster C1 harness connector.

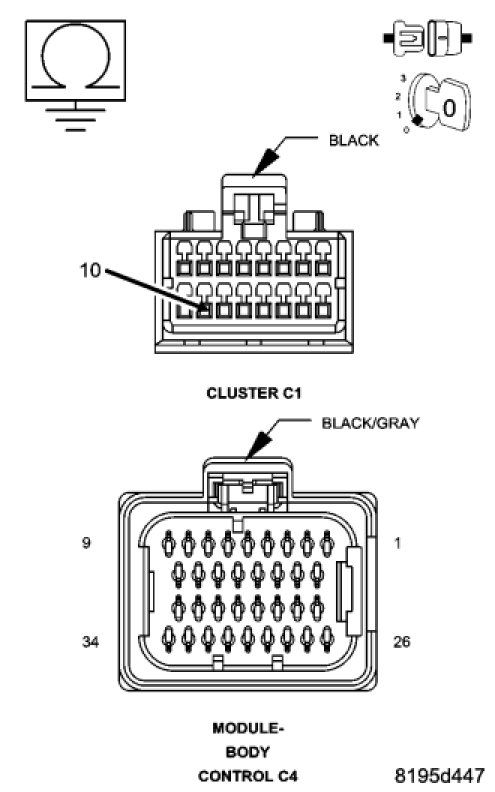

Measure the resistance between ground and the (L160) Right Turn Signal circuit.
Is the resistance below 5.0 ohms?

Yes

- Repair the (L160) Right Turn Signal circuit for a short to ground.
- PERFORM BODY VERIFICATION TEST - VER 1. Body Verification Test

No

- Replace the Instrument Cluster.
- PERFORM BODY VERIFICATION TEST - VER 1. Body Verification Test
