Engine Specifications







3.8L ENGINE

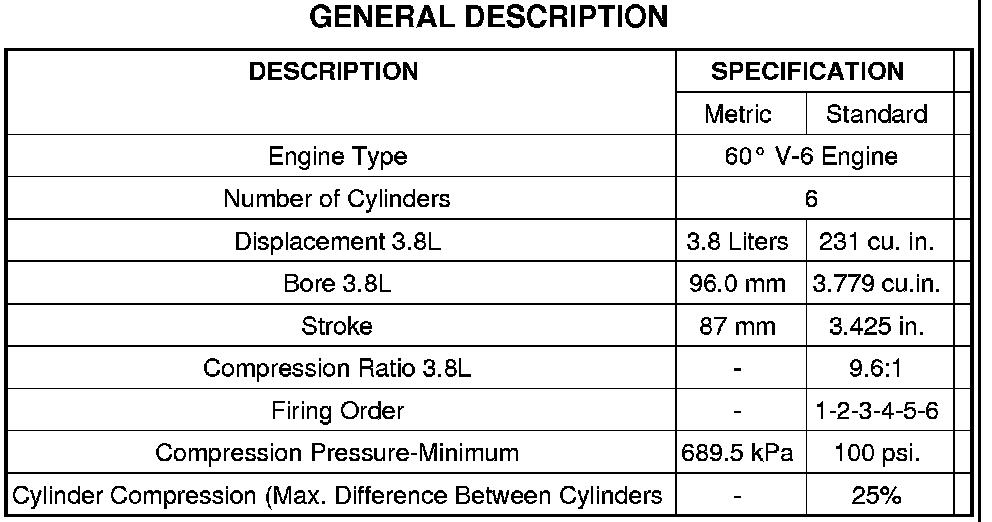

GENERAL DESCRIPTION

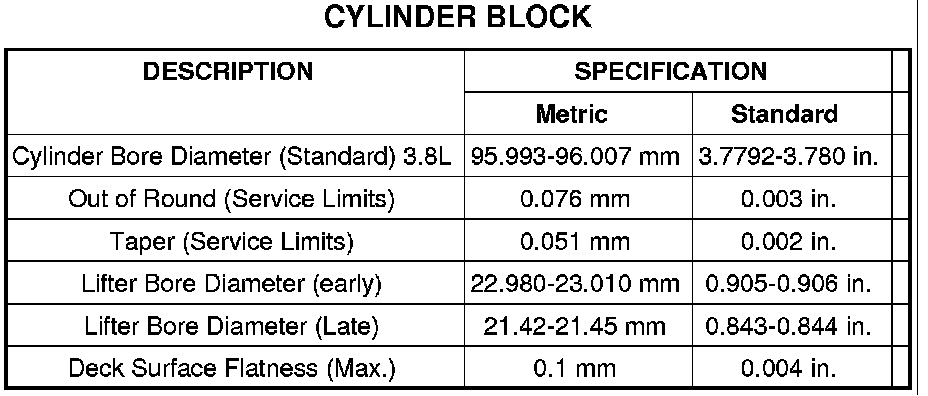

CYLINDER BLOCK

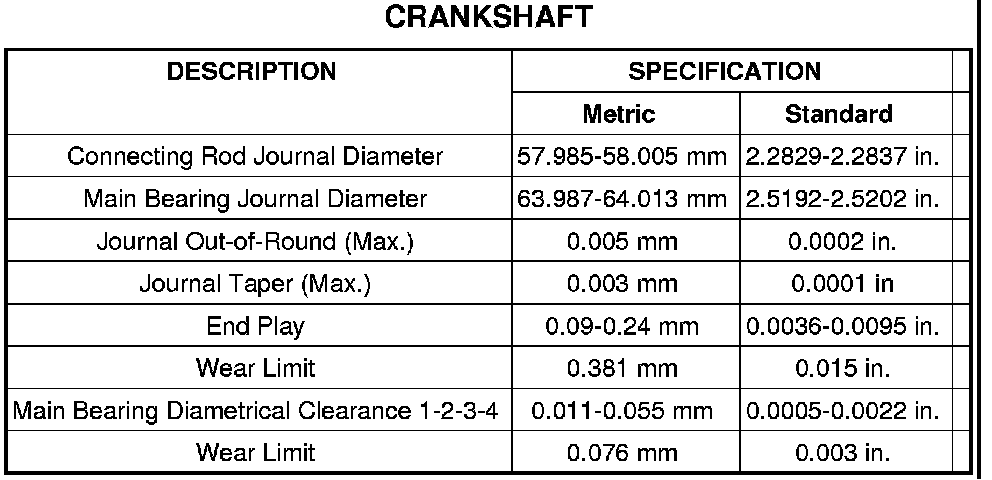

CRANKSHAFT

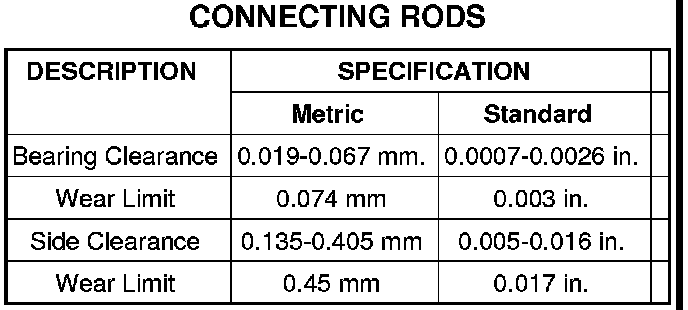

CONNECTING RODS

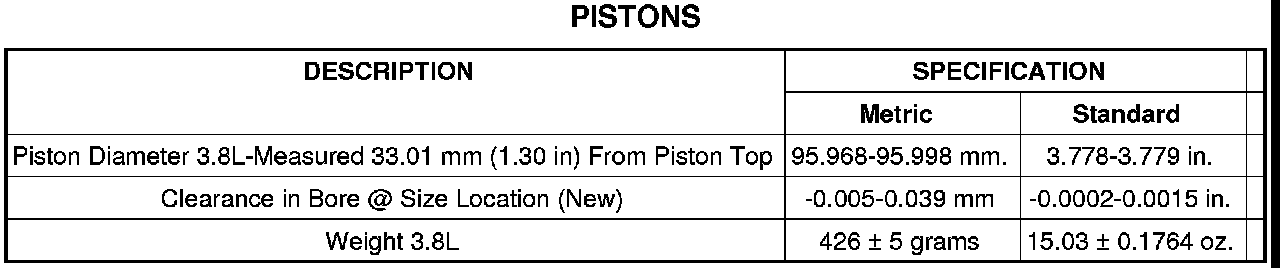

PISTONS

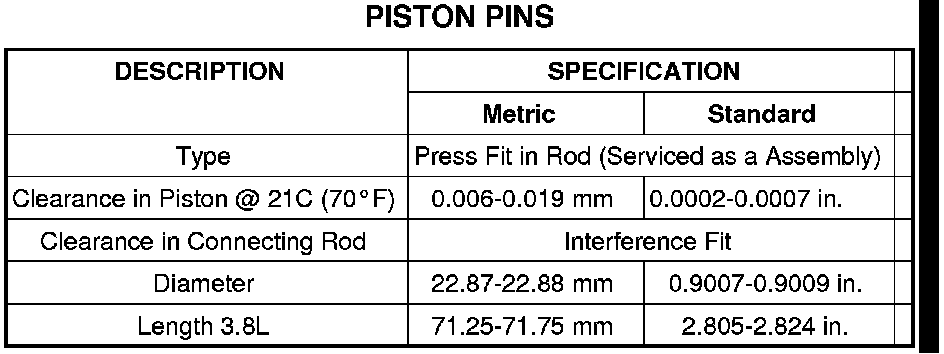

PISTON PINS

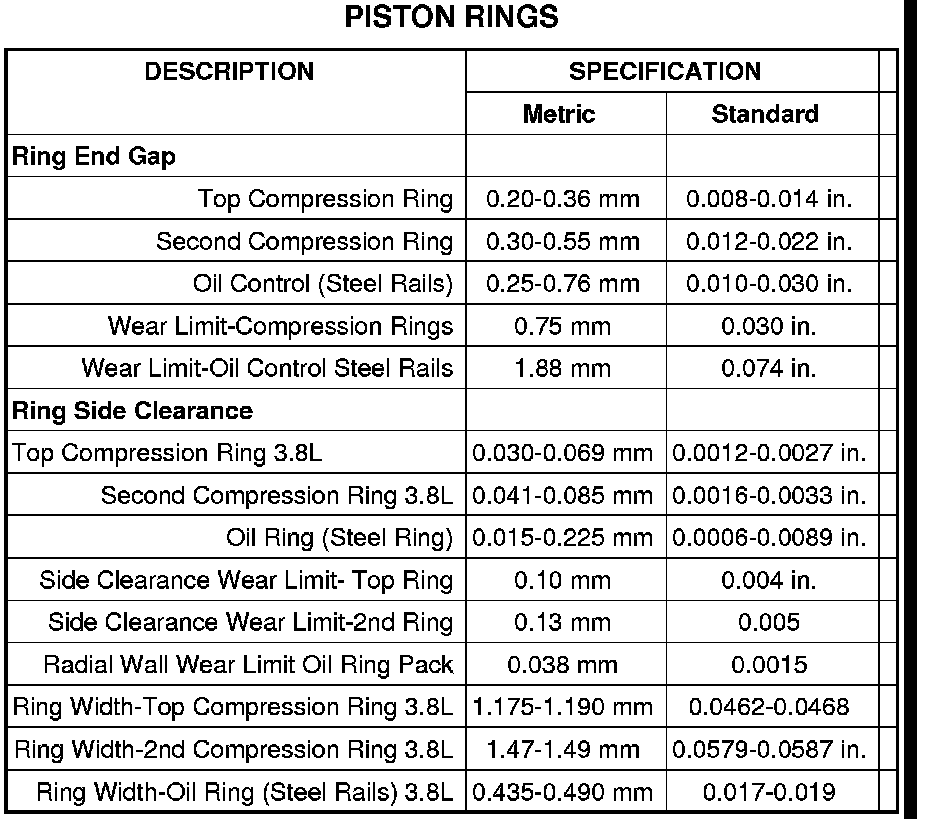

PISTON RINGS






CAMSHAFT

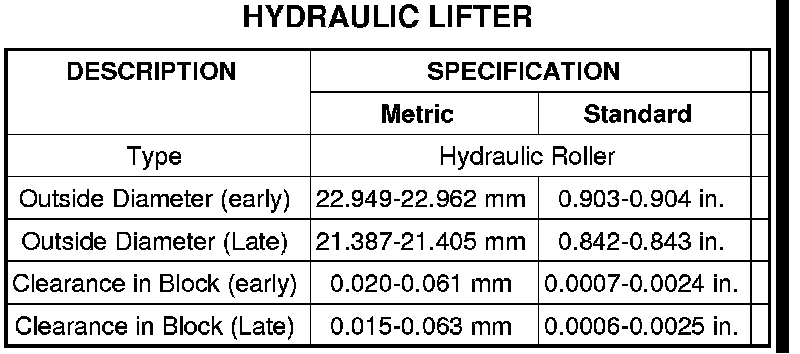

HYDRAULIC LIFTER

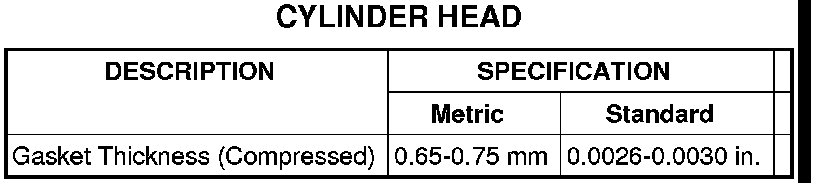

CYLINDER HEAD

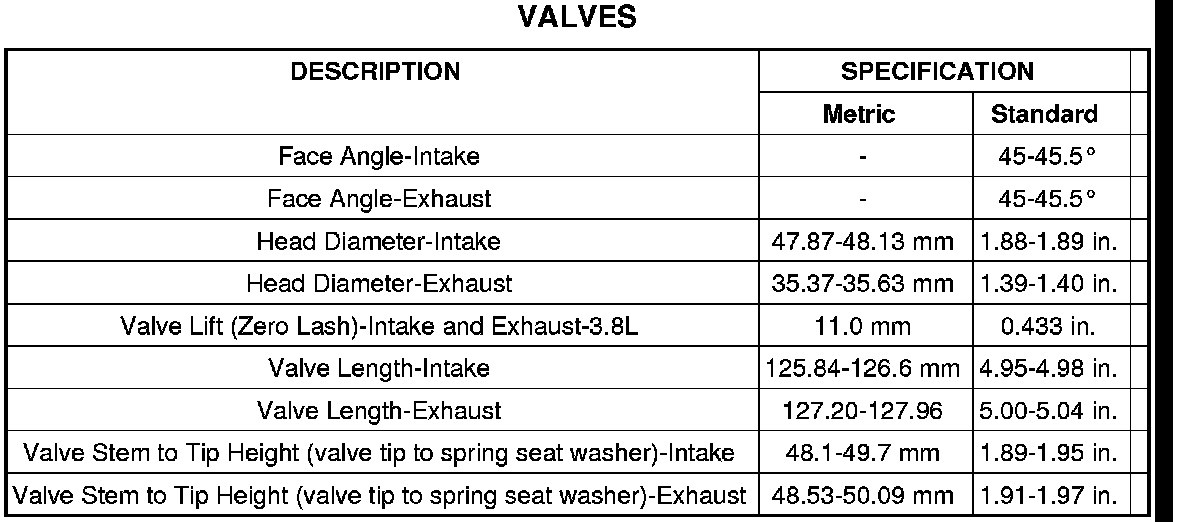

VALVES

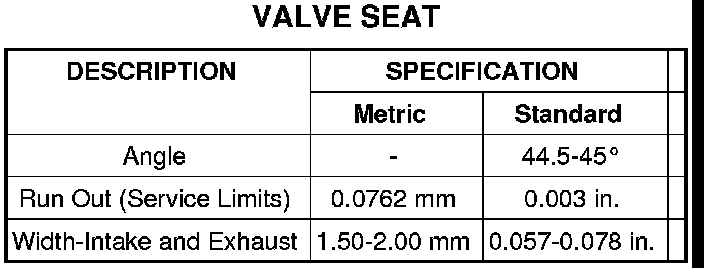

VALVE SEAT

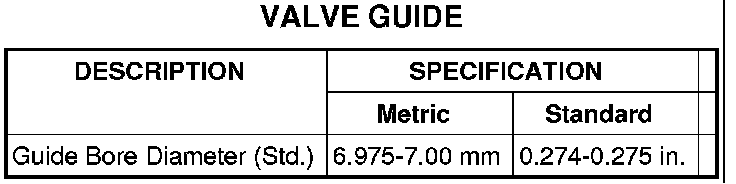

VALVE GUIDE

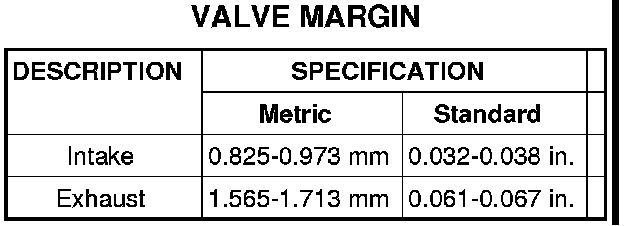

VALVE MARGIN






VALVE STEM DIAMETER

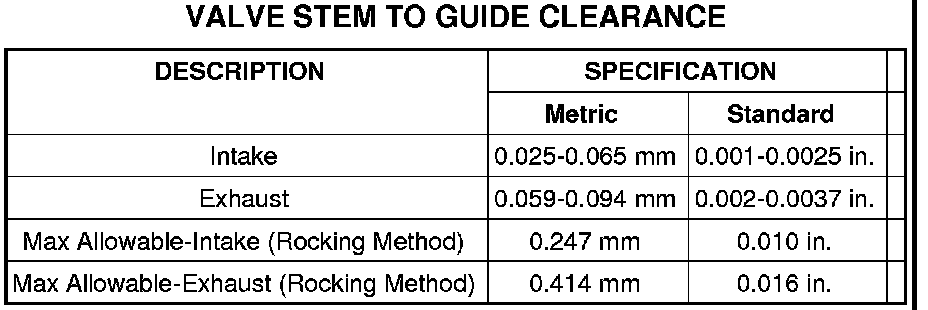

VALVE STEM TO GUIDE CLEARANCE

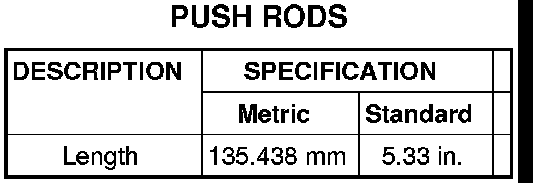

PUSH RODS

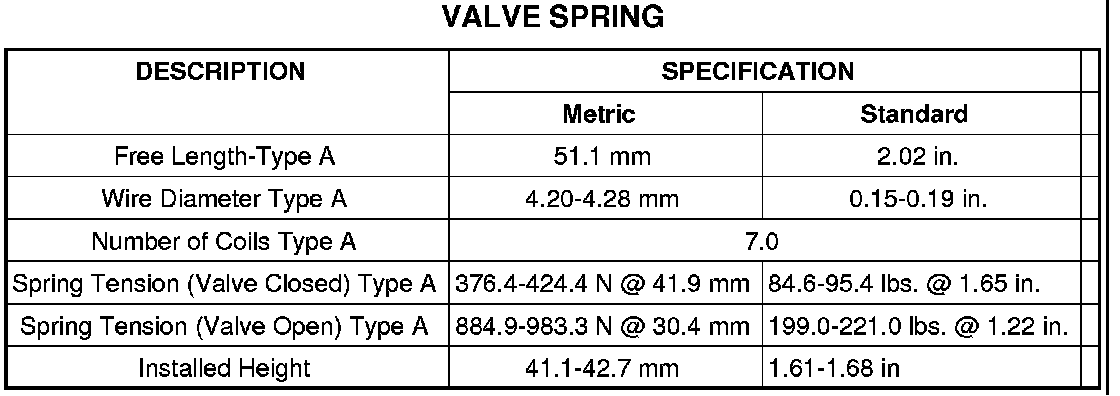

VALVE SPRINGS

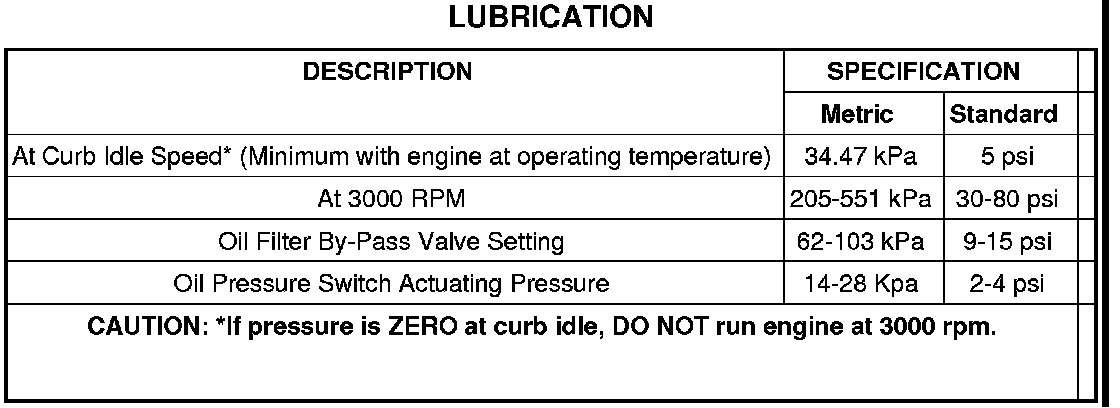

LUBRICATION

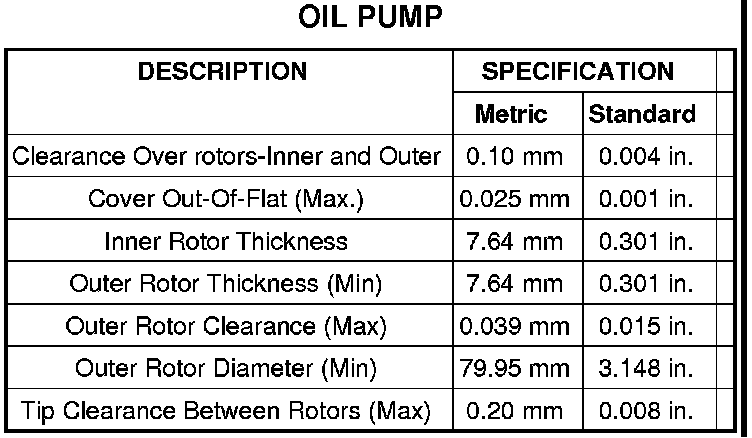

OIL PUMP
