Ignition Coil - Removal

3.8L





1. Disconnect and isolate negative battery cable at battery.

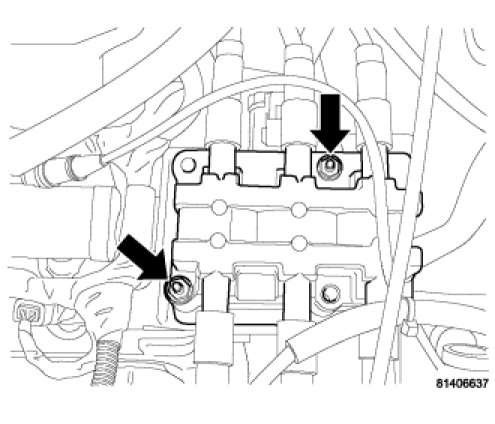

2. Disconnect electrical connector from ignition coil.
3. Grasp each ignition cable, twist assembly 1/2 turn and remove ignition cable from ignition coil.
4. Remove mounting nuts and ignition coil assembly from ignition coil bracket mounting studs.
