Ignition Coil: Diagrams

Component ID: 62

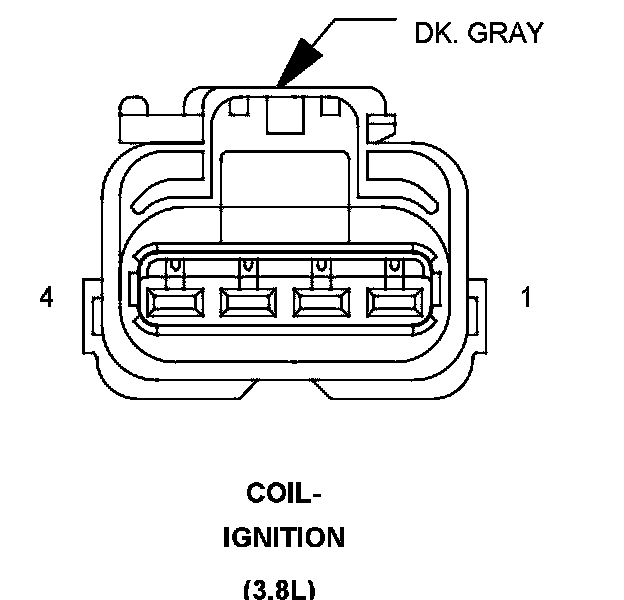

Component : COIL-IGNITION

Connector:
Name : COIL-IGNITION
Color : DK. GRAY
# of pins : 4
Qualifier : (3.8L)




Pin Circuit Description
1 K18 16DB/OR COIL 3 CONTROL
2 K344 16BR/GY ASD RELAY OUTPUT
3 K19 16DB/DG COIL 1 CONTROL
4 K17 16DB/TN COIL 2 CONTROL

Component Location - 10
