Cross Pipe - Installation

3.8L

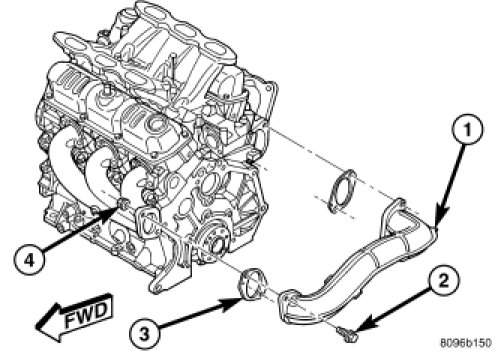

1. Position cross-over pipe to the manifold connections.
2. Position new gaskets and loosely install fasteners.
3. Tighten fastener to 41 Nm (30 ft. lbs.).
4. Install the cross-over support fastener. Tighten fastener to 41 Nm (30 ft. lbs.).
5. Start the engine and inspect for exhaust leaks. Repair exhaust leaks as necessary.
6. Check the exhaust system for contact with the body panels. Make the necessary adjustments, if needed.
