Removal

REMOVAL





1. Disconnect negative cable from battery.
2. Raise vehicle on hoist. Remove right wheel and inner splash shield.
3. Remove accessory drive belt. Accessory Drive Belt - Removal
4. Remove crankshaft damper. Vibration Damper - Removal

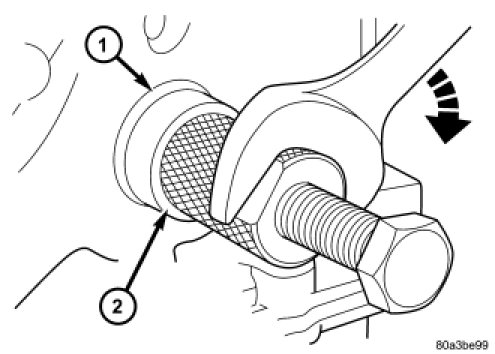

5. Position Special Tool 6341A (2) on crankshaft nose. Carefully screw the tool into the seal until it engages firmly. Be careful not to damage that crankshaft seal surface of cover

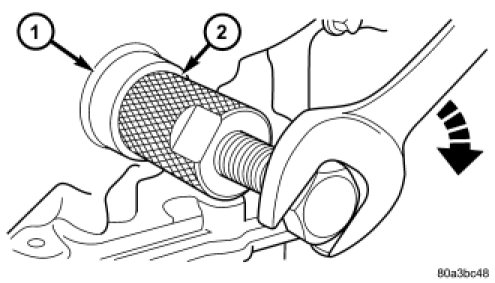

6. Remove oil seal by turning the forcing screw (2) until the seal disengages from the cover.
