Engine Oil Pump - Disassembly

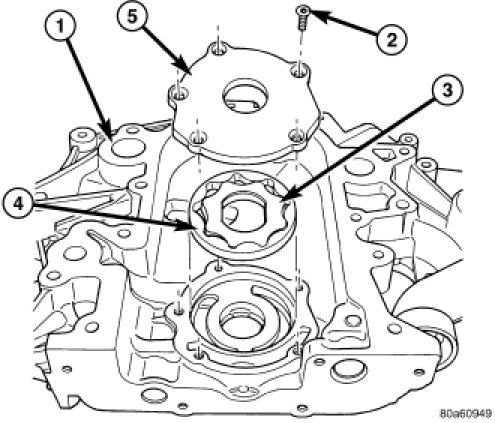

DISASSEMBLY





1. Remove oil pump cover screws, and lift off cover.
2. Remove oil pump rotors.
3. Clean and inspect oil pump components. Engine Oil Pump - Cleaning Engine Oil Pump - Inspection.
