Engine Oil Cooler - Installation

INSTALLATION

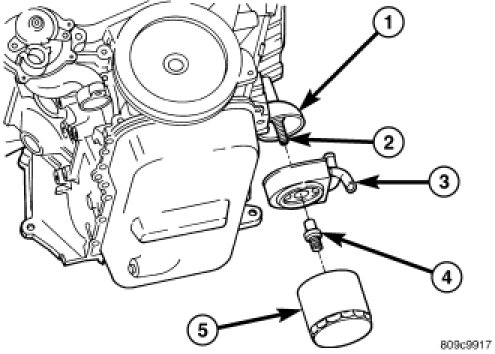

1. Lubricate seal and position oil cooler to connector fitting on oil filter adapter.

NOTE: Position the flat side of oil cooler parallel to oil pan rail.

2. Install oil cooler attachment fitting and tighten to 27 Nm (20 ft. lbs.).
3. Install oil filter.




4. Connect oil cooler inlet and outlet hoses.
5. Fill cooling system Service and Repair.
