Cylinder Head Off

INSTALLATION - CYLINDER HEAD OFF





1. If removed, install a new valve stem seal Valve Guide Seals - Installation.

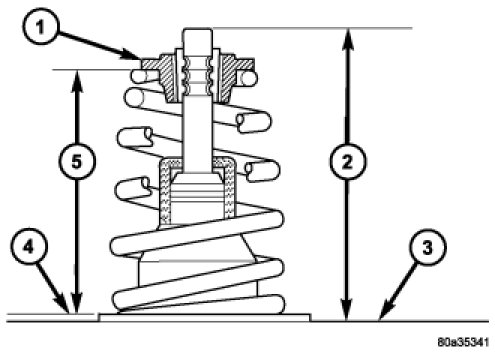

2. Position valve spring and retainer on spring seat.
3. Using Special Tool C-3422-D with 8464 Adapter , compress the spring only enough to install the valve retainer locks. Install valve retainer locks.




4. Slowly release the spring tension. Ensure the retainer locks are seated properly.
