INSTALLATION





1. Clean cylinder head and cylinder head cover mating surfaces. Inspect cylinder head cover surface for flatness. Replace gasket as necessary.
2. Inspect seal on the cover bolt for wear or damage (3). Replace bolt assembly as necessary.
3. Inspect the PCV hose for damage. replace as necessary.

NOTE: The cylinder head cover bolts contain a torque limiter sleeve and a seal (3). The seal and torque sleeve is replaced with the bolt.

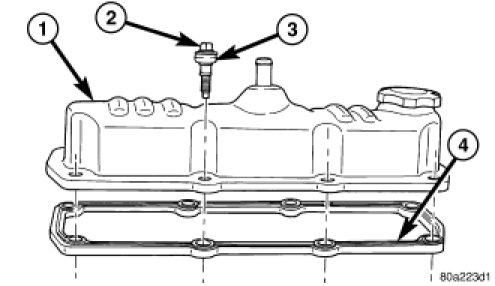

4. Assemble gasket to cylinder cover by inserting the bolt assemblies through each bolt hole on the cover and gasket (2).




5. Install cylinder head cover and bolts (2).
6. Tighten cylinder head cover bolts (2) to 12 Nm (105 in. lbs.).

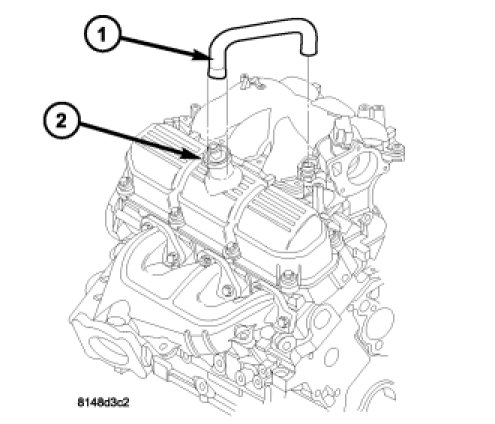

NOTE: Be sure that the PCV valve is properly seated inside the cylinder head cover protrusion and that the PCV hose completely covers the cylinder head cover protrusion.

7. Connect PCV hose to cylinder head cover (2).
8. Connect spark plug wires to spark plugs.
9. Connect negative cable to battery.
