Left

INSTALLATION





1. Clean cylinder head and cylinder head cover mating surfaces. Inspect cylinder head cover surface for flatness. Replace gasket as necessary.

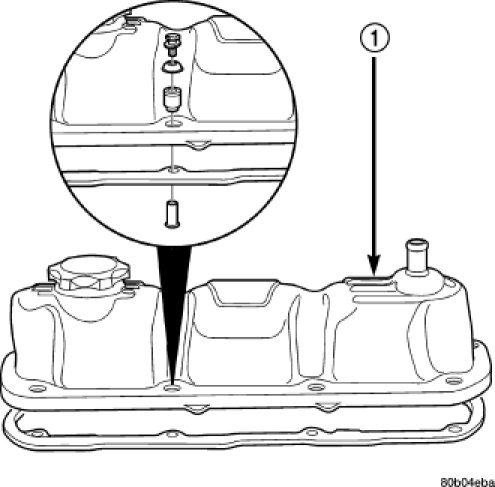

2. Assemble gasket to cylinder cover by inserting the fasteners through each bolt hole on cover and gasket.
3. Install the cylinder head cover and bolts.




4. Tighten cylinder head cover bolts (2) to 12 Nm (105 in. lbs.).
5. Connect crankcase vent hose.
6. Connect spark plug wires to spark plugs.
