Valve Cover: Description and Operation

DESCRIPTION

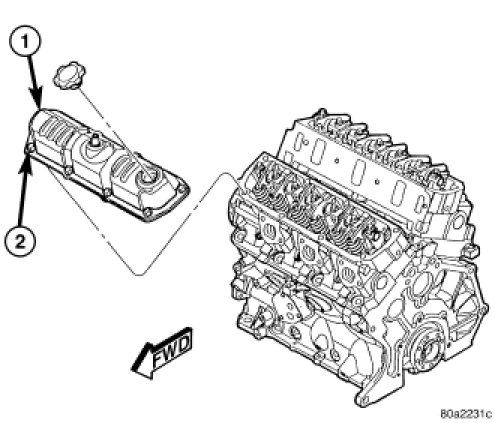

The cylinder head covers (1) are made of composite material. The covers are sealed with steel reinforced silicon rubber gaskets. The cylinder head cover uses rubber isolators (2) at each fastener location.

NOTE: Due to the tight packaging near the cylinder head covers, which makes spill clean-up difficult, a spill during an engine oil change may be misinterpreted as an oil leak. When investigating an oil leak in the location of the cylinder head covers and intake manifold, follow the procedure found in Oil Leak Diagnosis for determining the source of a leak.
