Procedures

STANDARD PROCEDURE - PISTON RING FITTING









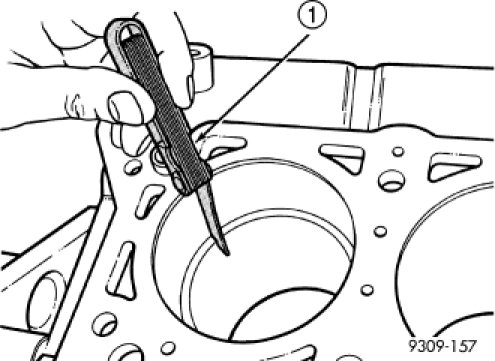

1. Wipe cylinder bore clean. Insert the ring and push down with piston to ensure squareness in bore to approximately 12 mm (0.50 in.) from top of cylinder bore. Check ring gap with a feeler gauge (1). For clearance specification Engine Specifications.

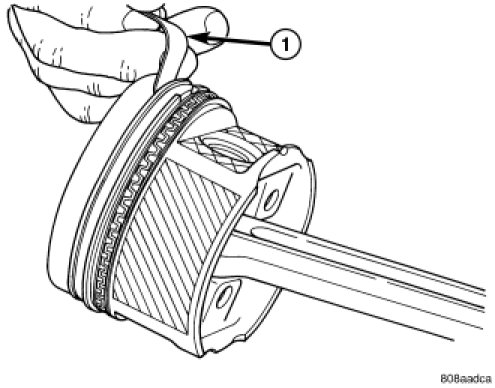

2. Check piston ring to groove side clearance (1). For clearance specification Engine Specifications
