Installation

INSTALLATION





1. Place seat back foam and cover together.




2. Work the foam and cover under recliner torque rod.




3. Place seat foam/cover onto seat frame.

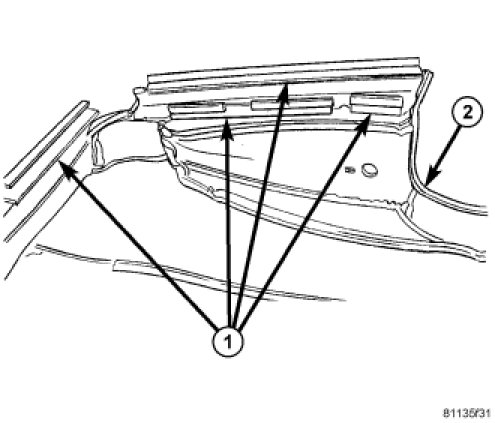

4. Route heated seat wire harness to under side of cushion pad and connect the three heated seat wire harness retainers.

NOTE: Use care not to damage the heated seat wire harness.

5. Remove seat back foam/cover and heating harness assembly together (keep trim attached to foam pad).
6. Feed back harness through hole in shield and connect wiring harness (for heated seats) at inner shield.




7. Install trim ring.




8. Engage inner J-straps to trim ring.




9. Install screws attaching trim ring to seat back frame.
10. Engage outer J-straps at seat back.
11. Install three screws attaching outboard side shield.
12. Install two screws attaching inboard side shield.
13. Push outboard side handle on retainer tab until it locks.
14. Install cushion and cover onto seat pan.
15. Install three screws attaching inner side shield hinge area.
16. Install two screws attaching outer side shield buckle side.
17. Install seat inner panel. Installation
18. Install armrest. Armrest - Installation.




19. Connect heat element wire harness.
20. Install second row seat. Seat - Installation.
21. Install headrest and sleeves Headrest - Installation.
22. Connect battery negative cable.
