VTSS Does Not Trip From Drivers Door

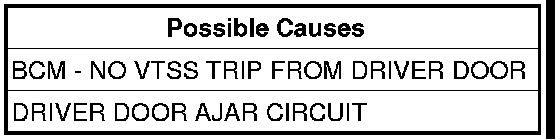

*VTSS DOES NOT TRIP FROM DRIVERS DOOR

For a complete wiring diagram Consult Diagrams/Electrical





Diagnostic Test

1. CHECK DOOR AJAR STATUS

NOTE: For the results of this test to be valid, the security system must arm and flash the VTSS indicator properly.

With the scan tool under Driver Door Module, read the DOOR STATUS.
Open the driver door.
Does the scan tool display DRIVER DOOR AJAR SW: CLOSED?

Yes

- Replace and program the Body Control Module.
- Perform VTSS VERIFICATION TEST - 1A. Vehicle Theft Security Verification Tests

No

- Refer to symptom DRIVER DOOR AJAR CKT OPEN. Driver Door Ajar Circuit Open
- Perform VTSS VERIFICATION TEST - 1A. Vehicle Theft Security Verification Tests
