B222C

B222C-VEHICLE CONFIGURATION NOT PROGRAMMED

For a complete wiring diagram Consult Diagrams/Electrical.

- When Monitored:
With the ignition on.

- Set Condition:

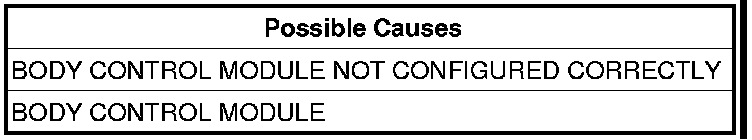

The Body Control Module is not configured correctly to the vehicle.





Diagnostic Test

1. CHECK FOR ACTIVE DTC
With the scan tool, read the active DTC's.
Cycle the ignition switch from off to on at least 5 times, leaving the ignition on for a minimum of 90 seconds per cycle.
With the scan tool, read the active DTC's.
Does the scan tool display this DTC as active?

Yes

- Go To 2

No

- If the DTC is stored, check for an intermittent condition. Visually inspect the related wiring harness connectors. Look for broken, bent, pushed out, or corroded terminals.

2. CONFIGURE THE BCM TO THE VEHICLE
With the scan tool enter program network configuration and program the BCM to the vehicle configuration.
With the scan tool, erase BCM DTC's.
Cycle the ignition switch from off to on at least 5 times, leaving the ignition on for a minimum of 90 seconds per cycle.
With the scan tool, read the active DTC's.
Does the scan tool display this DTC as active?

Yes

- Inspect the wiring and connectors for damage or shorted circuits. If ok, replace and program the Body Control Module.
- PERFORM the BODY VERIFICATION TEST - VER 1.Body Verification Test.

No

- Repair is complete.
